Description
Touch Control Sensor Switch for Mirror Light can be powered by simply supplying a 12VDC. It has a switch control function to light up LED light from a single touch. The product is specially designed for smart light mirrors. It is suitable for the control of single mirror light. The module has a feature to control the intensity of the LED strip. The touch switch has a feature of backlight, according to this as the power gets supplied to the module the touch switch starts glowing white and whenever the LED is switched on the white colour changes to blue.

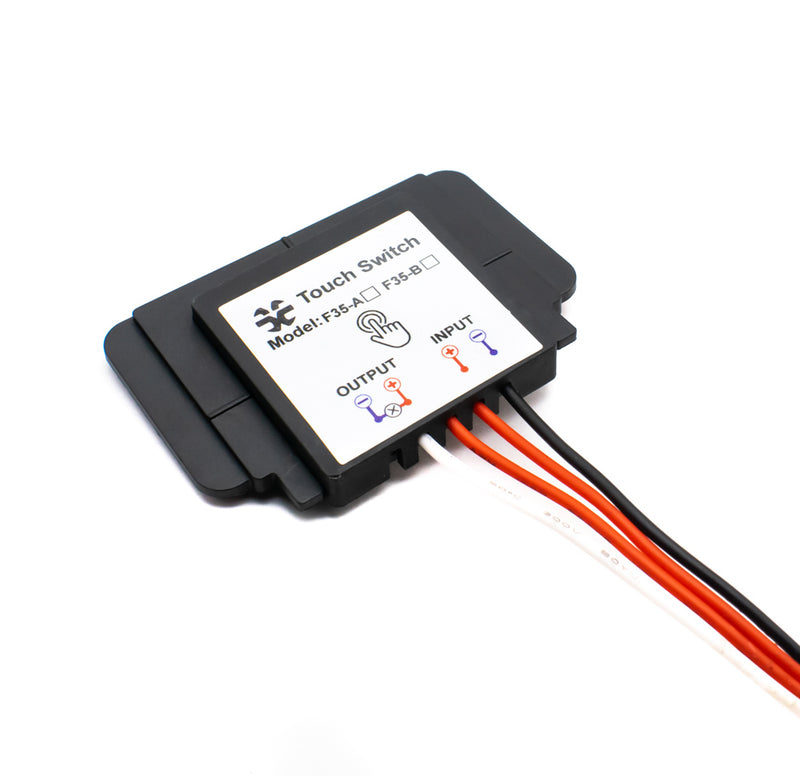

- INPUT gets connected to the input 12VDC supply to power the module.
- OUTPUT gets connected to the LED strip. The LED’s intensity can be controlled by touching continuously the touch switch, it goes from bright to dim then removing the finger and placing it again, it goes from dim to bright.
Feature
- LED can be made ON-OFF just by a single touch.
- Sensitive to touch
- Lighting control
- LED’s intensity can be altered.
- Easy to connect with LED.
Specification
| Rated voltage | 12VDC |
| Rated Current | 3A |
| Model | F35-B |
| Dimming Function | YES |
| Number of Wires | 4 |
| Dimension(LxBxH) | 33.6mm x 33.6mm x 7mm |
| Cover Dimension(LxW) | 56.7mm x 37.3mm |
| Country of Origin | China |
