Description

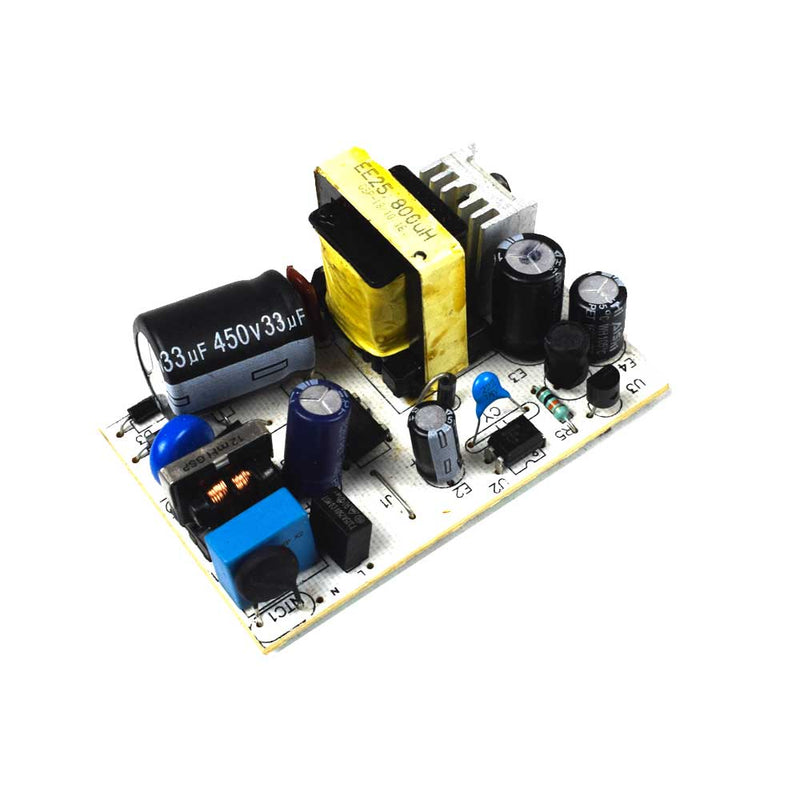

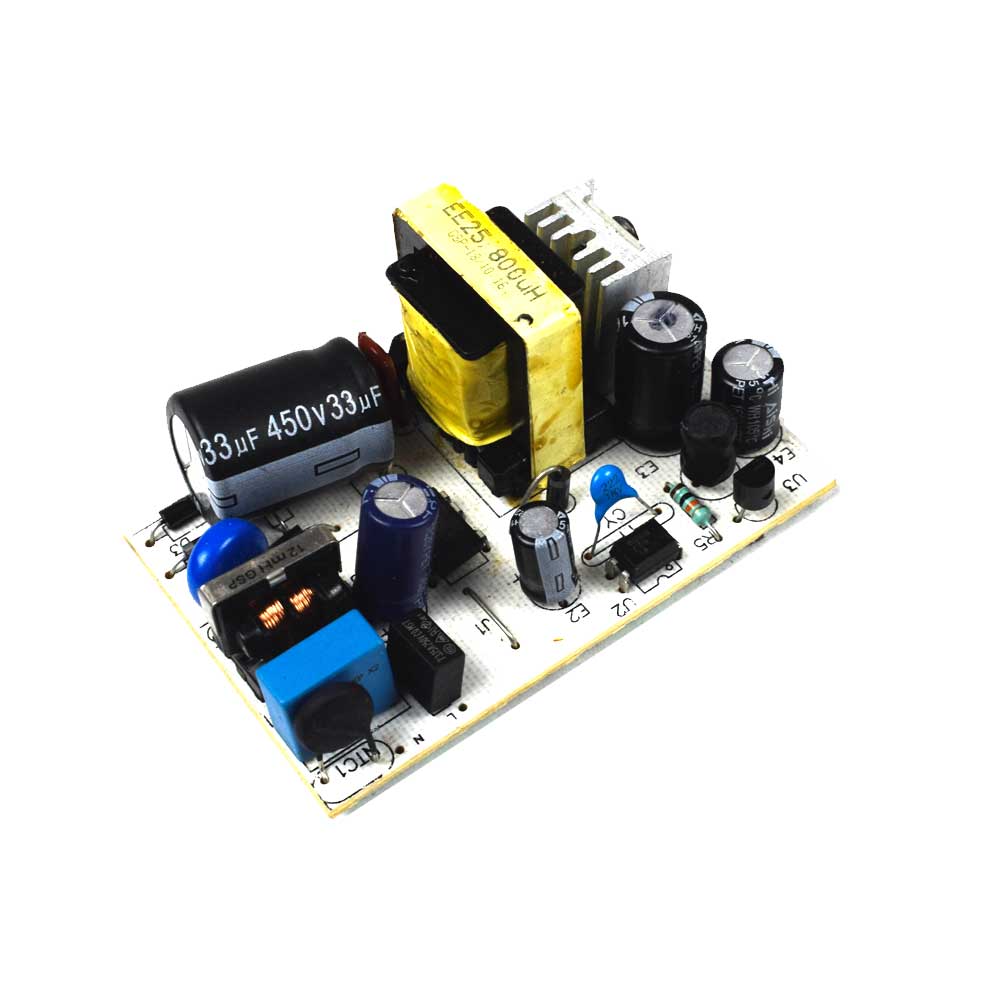

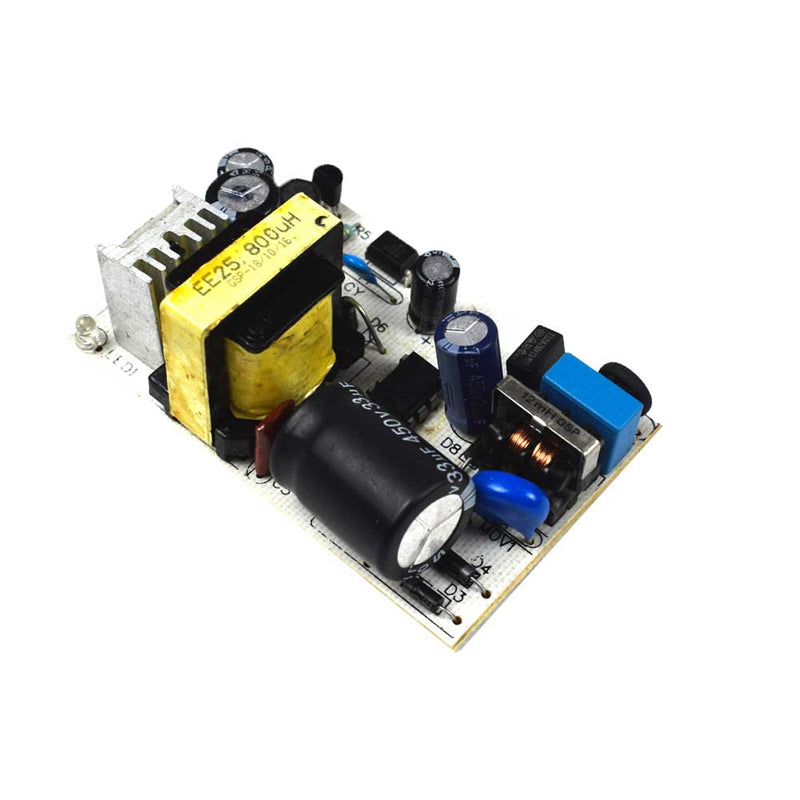

This is a 12V Compact SMPS (Switched-Mode Power Supply) Module which converts 220V AC (Alternative Current) to 12V DC (Direct Current). It can provide up to 2A maximum current. It is an SMPS Power Adaptor Module Despite being small in size this power supply works effectively. It can be used for many purposes with the best performance from it. This type of power supply Adaptor is mainly used in, chargers, microcontrollers, portable amplifiers, audio-video players, Bluetooth/wifi modules, DC motors, and led light circuits.
Feature:
- Small size
- Universal AC Voltage
- High efficiency and reliability
Applications:
- Electronic instruments, equipment or apparatus
- Household appliances
Specifications
| Model | AD122000I Adaptor Module |
| Product | 12V 2A Switch Power Supply Module |
| Type |
SMPS Module |
| Input Voltage |
90-270V AC 50/60Hz |
| Output Voltage | 12 VDC |
| Output Current |
2 Amp |
| Input Power | 0.8A max |
| Size (L*W*D) (mm) | 70*46*29 (mm) |
| Origin | Make in India |
| Country of Origin | China |
