Description

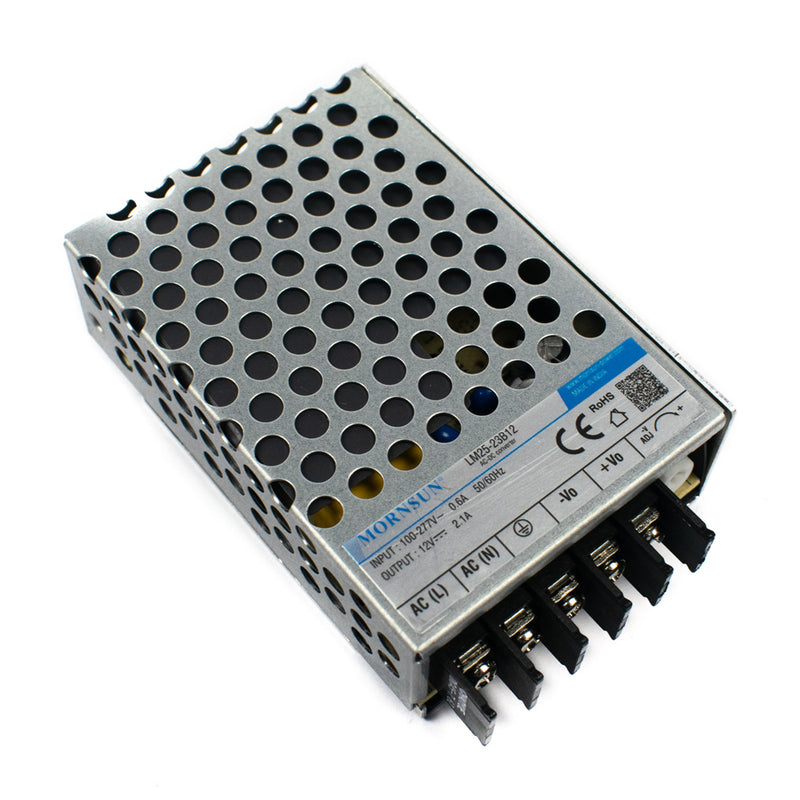

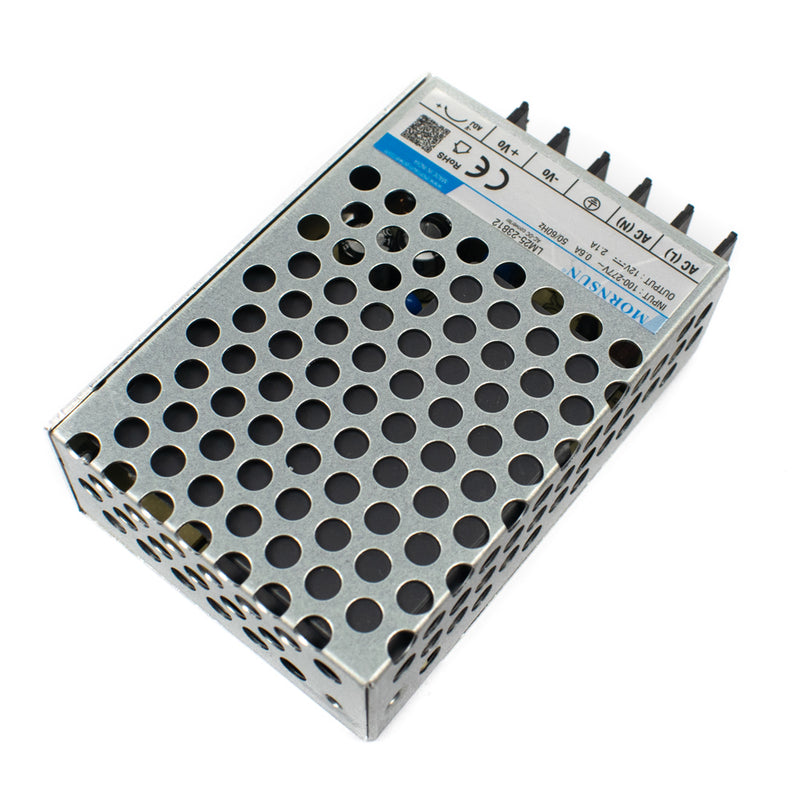

LM25-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features universal AC input and at the same time accepts DC input voltage, is cost-effective, low no-load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
FEATURES
- 85 - 305VAC or 100 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Up to 88% efficiency
- No-load power consumption < 0.5W
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
Specifications
| Brand | Mornsun |
| Model | LM25-23B12 |
| Output Voltage | 12V |
| Maximum Current | 2.1A |
| Power | 25.2W |
| Adjustable Voltage Range | 10.8-13.2 |
| Country of Origin | China |
