Description

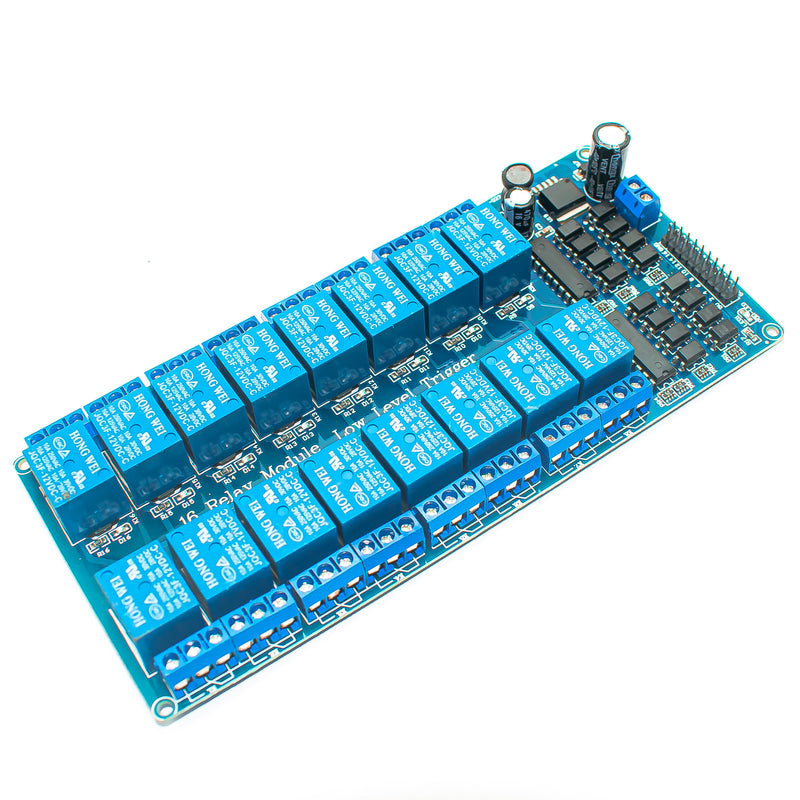

This is a 12V 16 Channel Relay Module with a Light Coupling LM2596 Power Supply that can control a wide range of appliances and other high-current devices. Microcontrollers (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic) can be used to control it directly. This is a 12V 16-Channel Relay Interface Board with 15-20mA Driver Current for each individual relay. The board has a status indicator LED for each relay output.
Features
- Number of Channels: 16
- Control Signal voltage: 5V, active low
- Load Voltage: AC 250V/10A, AC 125V/15A DC 30V 10A
- Input Voltage: 12V DC
- Each board needs 15-20mA Driver Current
- I/O port driver is active at low level.
- 1-16 channels optionally fully open/closed, or any channel.
- Standard interface that can be controlled directly by the microcontroller.
- Indication LEDs for Relay output status.
- Independent common end COM makes the relay convenient for users to access different signals.
- Use optocoupler protection with high safety performance
- Widely used for all MCU control, industrial sector, PLC control, smart home control
Specifications
| Operating Voltage | 12V DC |
| Relay Driving Current | 20mA |
| No. of Channels | 16 |
| Load Rating | AC 250V @10A, DC 30V 10A |
| Relay ON | Low Level |
| Size | 175x80x23mm |
| Country of Origin | China |
