Description

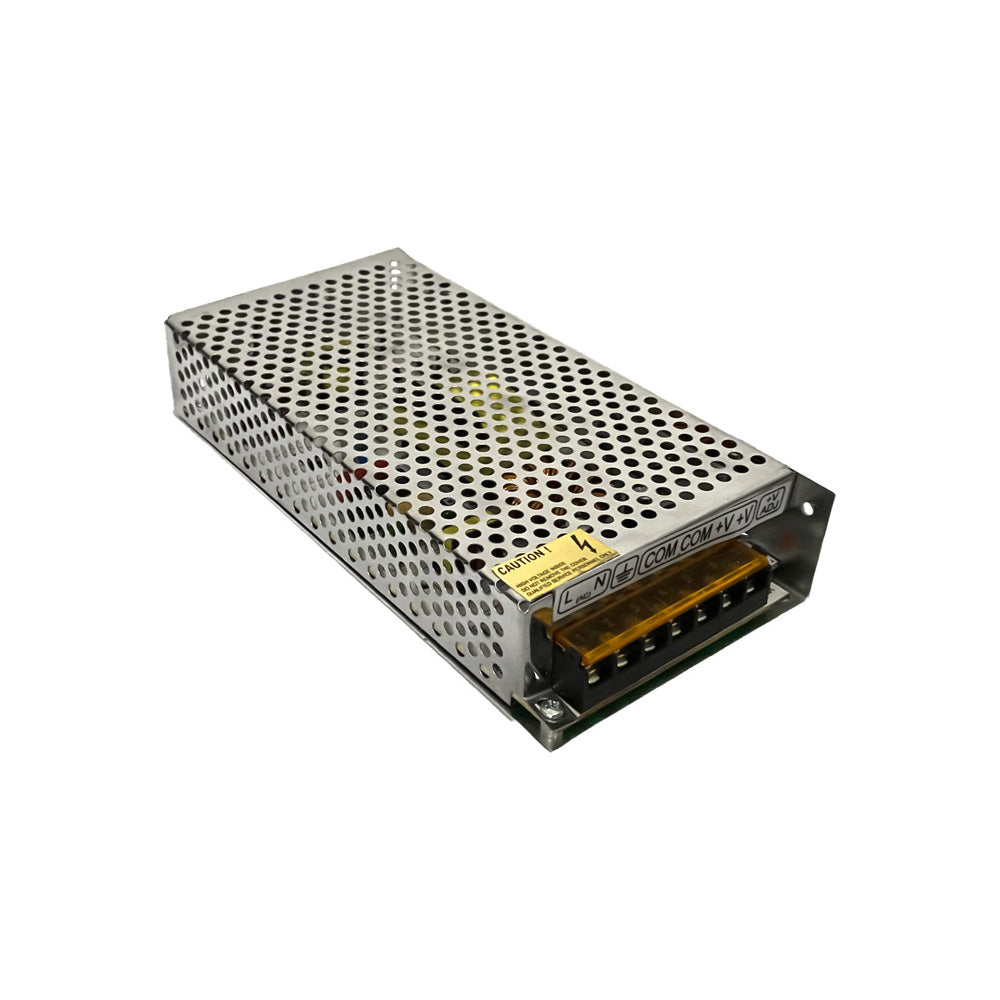

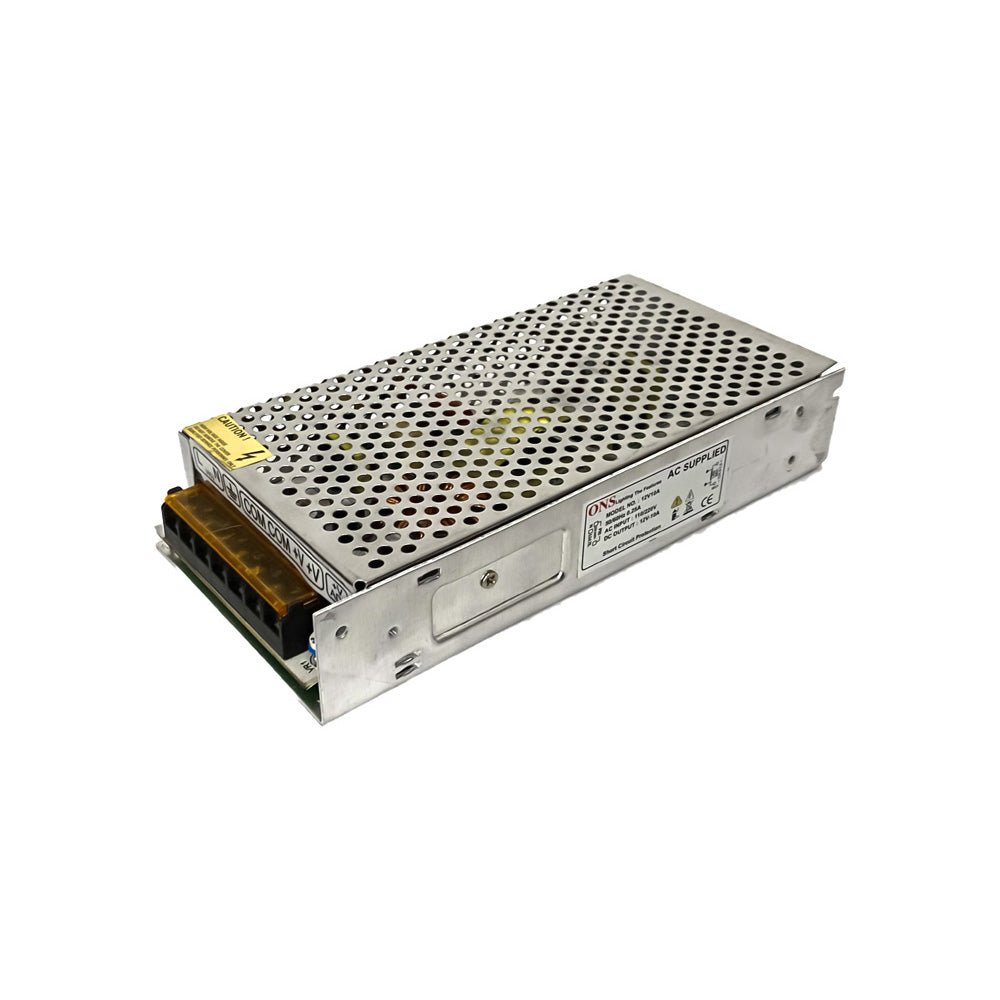

This is the switched-mode power supply (SMPS) which converts 100-250V AC to 12V DC. It can provide up to 10A maximum current. All types of protections are provided in the supply.
Features:
- Output Over Voltage Protection, Over Current Protection, Short Circuit Protection and Surge Protected output are provided.
- Universal AC Range
- A metal Case is provided
- No Minimum load is required
- High Efficiency, Reliability & low energy consumption
Specifications
| Input Voltage | 100V-250V AC 50 / 60Hz |
| Output Voltage | 12V DC, 10A |
| Protections | Output Over Voltage Protection, Over-Current Protection, Short Circuit Protection, Surge Protected Outputs |
| Dimensions (LxWxH) | 210x115x50 (mm) |
| Weight | 600 gm |
