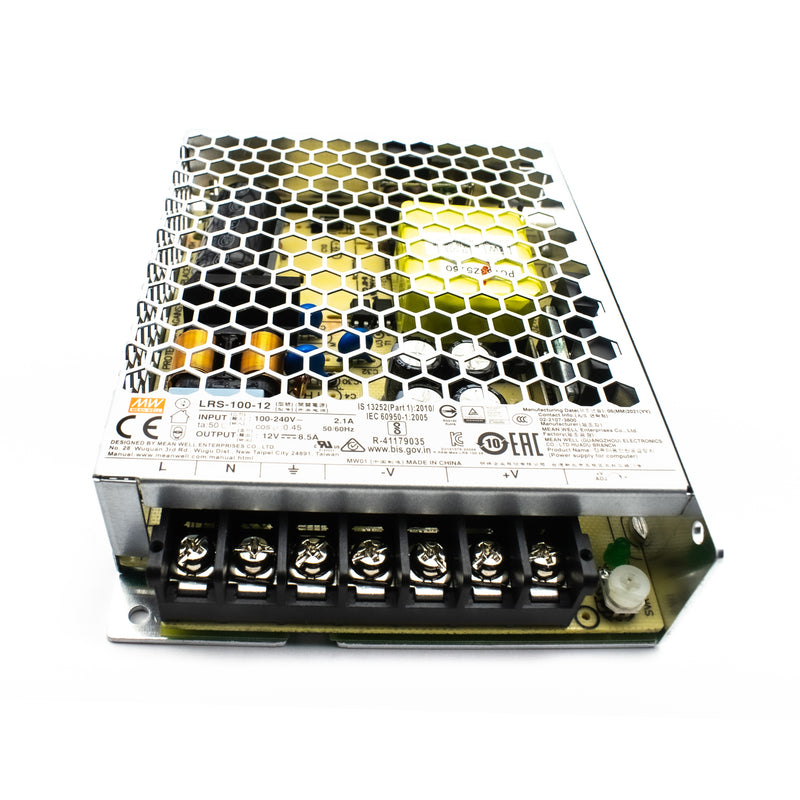

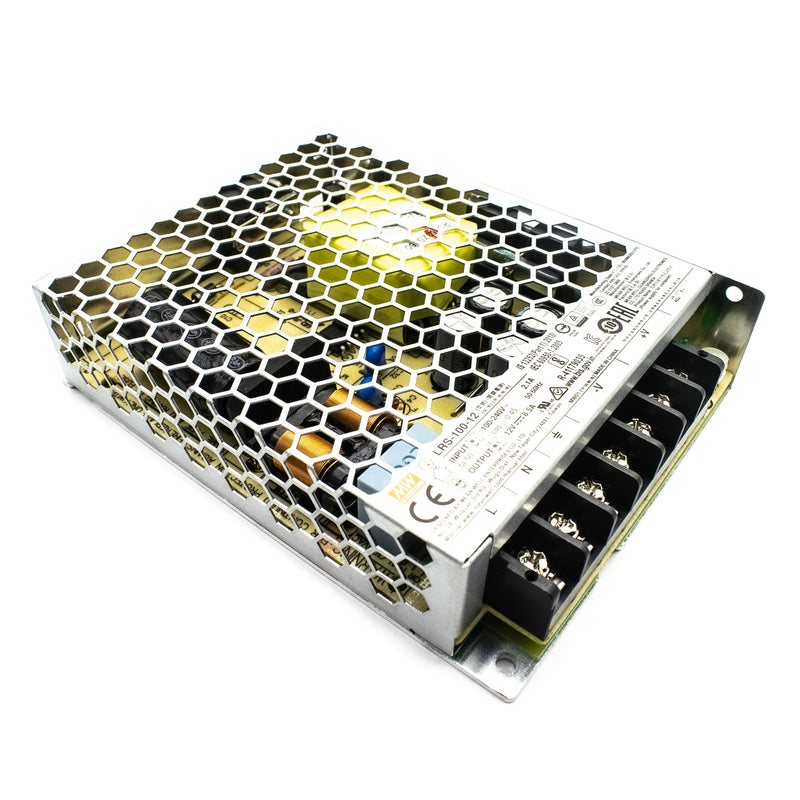

12V 102W Meanwell SMPS (LRS-100-12)

Save 11%
Sold By: HatchnHackSKU: SD100

Price:
Sale price₹ 1,100.00 Regular price₹ 1,241.00

Tax included Shipping calculated at checkout

Out of stock

Description

LRS-100 series is a 100W single-output enclosed type power supply with 30mm of low profile design. The AC input is 85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 12V. The SMPS has high efficiency up to 88%, the design is of a metallic mesh case which enhances the heat dissipation of LRS-100 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.3W), which allows the end system to easily meet the worldwide energy requirement. LRS-100 has the complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-100 series can be used for many purposes with the best performance from it.

Feature:

  • Universal AC input/ Full range
  • Protections from Short circuit, Overload and Overvoltage
  • Cooling by free air convection
  • It has a LED for indicating power on.
  • 100% full load burn-in test
  • Using 105°C long life electrolytic capacitors for better performance
  • Withstand 300VAC surge input for 5-second
  • Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
  • High operating temperature up to 70°C
  • Miniature size and 1U low profile
  • Withstand 5G vibration test
  • No load power consumption<0.3W
  • High efficiency, long life and high-reliability

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances
Specifications
Model LRS-100-12
Brand Meanwell
DC Voltage 12V
Rated Current 8.5A
Rated Power 102W
Ripple & Noise 120mVp-p
Voltage Adj. Range 10.2V~13.8V
Voltage Tolerance 1%
Line Regulation 0.5%
Load Regulation 0.5%
Setup, Rise Time 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
    Hold Up Time 55ms/230VAC 10ms/115VAC at full load



    Voltage Range

    85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)

    Frequency Range

    47~63Hz

    Efficiency

    89.5%

    AC Current

    4A/115V AC, 2.0A/240V AC

    Over Load 110~140% rated output power
    Hiccup mode recovers automatically after the fault condition is removed.
      Over Voltage

      28.8V~33.6V

      Working Temperature

      -30°C to 70°C

      Working Humidity

      20~90%

      Size

      129*97*30mm (L*W*H)

      Country of Origin China
