Description

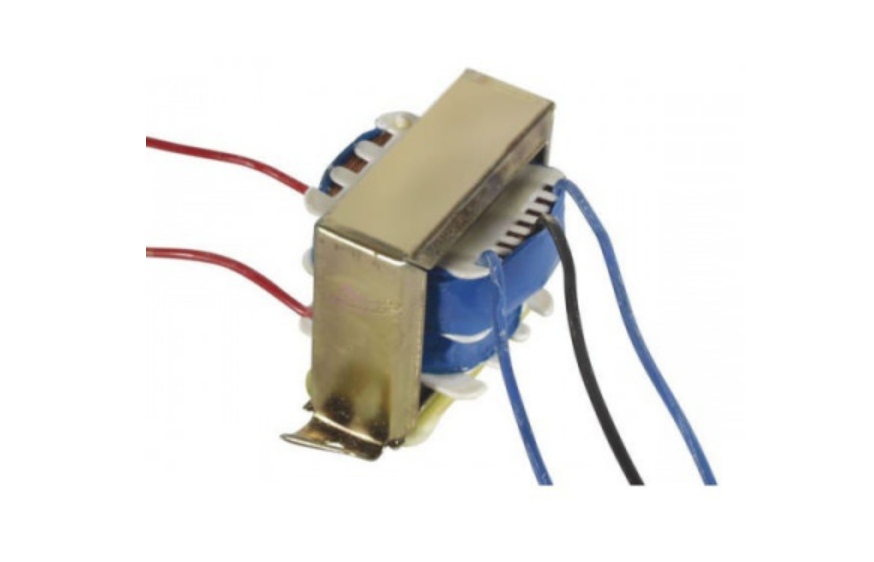

It's a 12-0-12 12V 2A Center Tapped Step Down Transformer. This center-tapped step-down transformer is a general-purpose PCB mounting main transformer. This Transformer has 230v primary winding and center-tapped secondary winding. This transformer gives output of 12v‚12v and 0v and its output current is 2A. The transformer is a static electrical device that transfers energy by inductive coupling between its primary winding and secondary winding. The core of this transformer has been made of high-permeability silicon steel. This type center tapped step-down transformer is generally used for AC to AC converters for small DIY projects ‚ battery chargers ‚ small power supplies.
Features
- It is a step-down transformer
- Its input voltage is 230V AC
- It's Output voltage 12V‚ 12V or 0V AC
- It's output current 2A
- It's mounting type Vertical
- It has soft iron core
| Specifications | |
|---|---|
| Voltage | 12v |
| No. of Pins | 5 |
| Origin | India |
| Input Phase | Single Phase |
| Material | iron |
| Core Type | Iron core |
| Type | Main Transformer |
| Mounting Type | Through Hole |
| Output Current | 2A |
| Frequency | 50Hz |
