Description

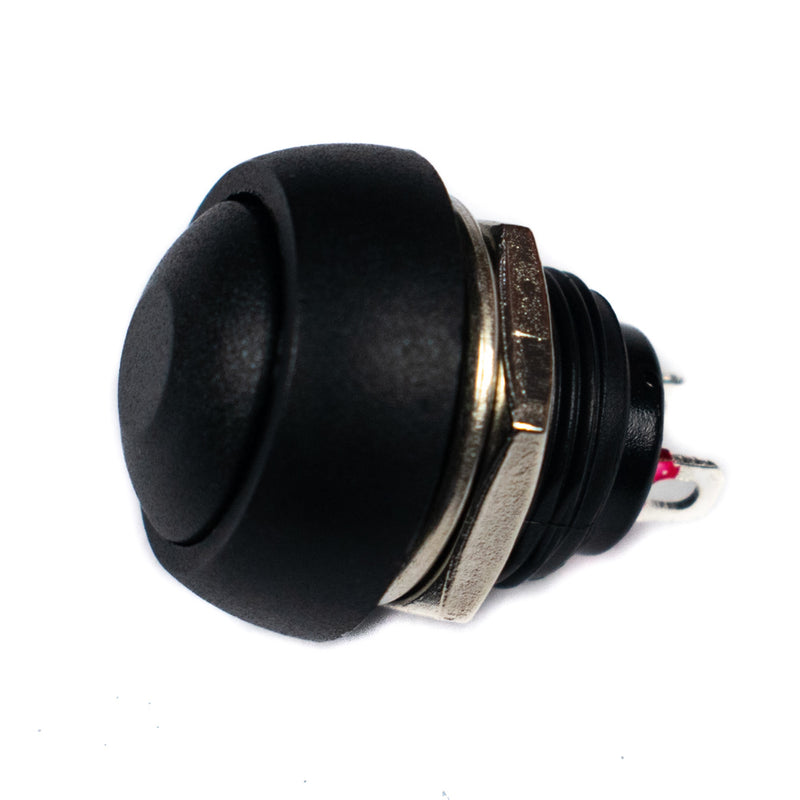

The Push-button switch is widely used as an operational unit in various electrical circuits, electrical devices, and machines in the home and industry. The switch can operate circuits, turning on and offloads such as contactors, engines, relays, and so on. It is a push ON release OFF type switch.
Specifications
| Type | PBS-33B |
| Mounting hole | 12mm |
| Rating | 1A 250V |
| Dielectric Intensity |
1500V AC/ min |
| Life Cycle | >10000 Cycles |
| Contact Type | NO |
| Contact Resistance | <50mΩ |
| Insulation Resistance | >100MΩ |
| Operating Temperature | -25°C to 85°C |
| Protection | Waterproof |
| Colour | Black |
| Country of Origin | China |
