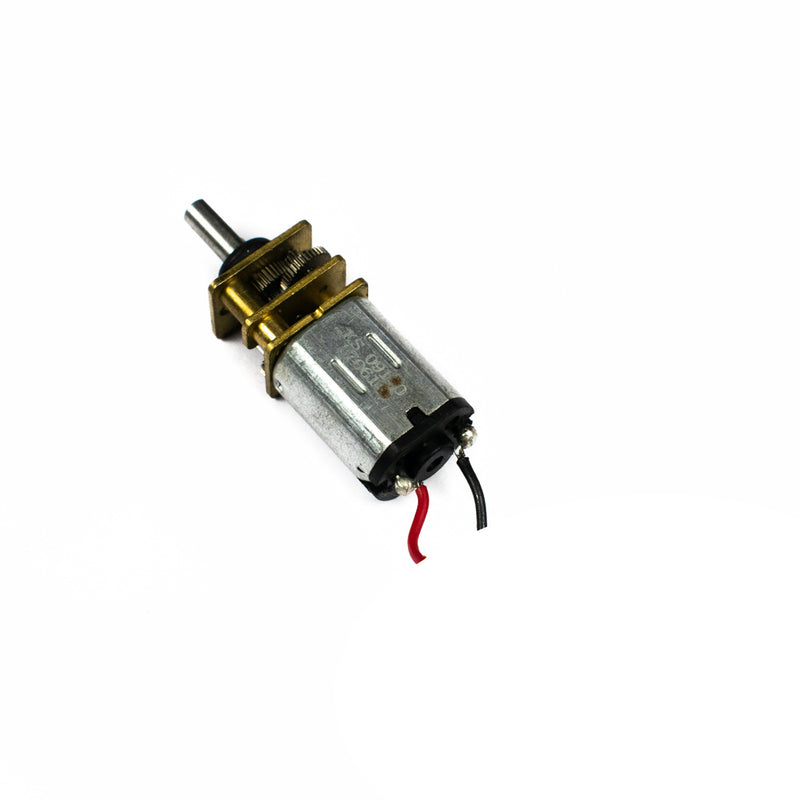

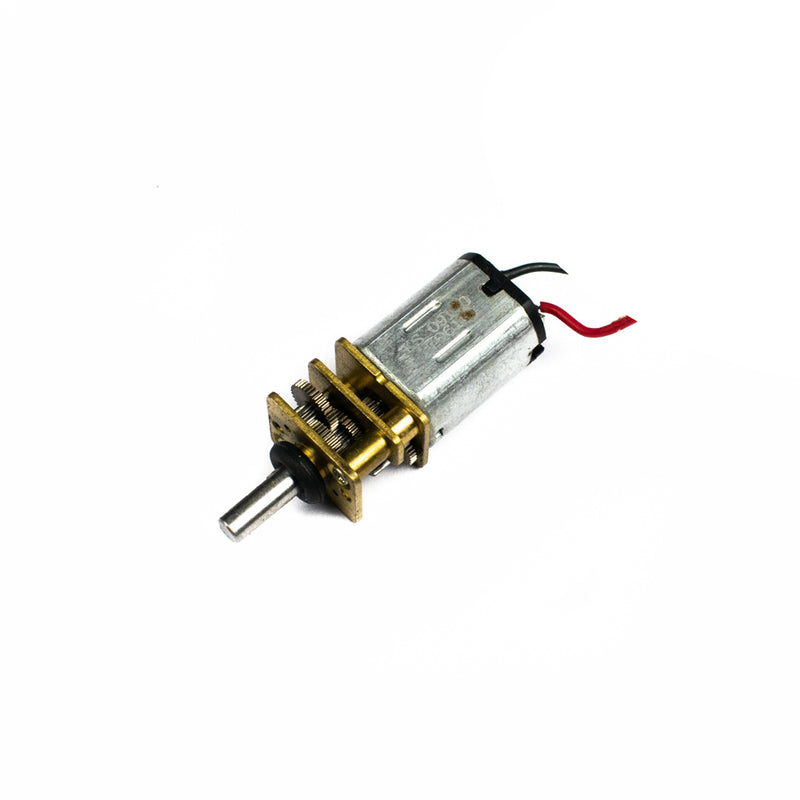

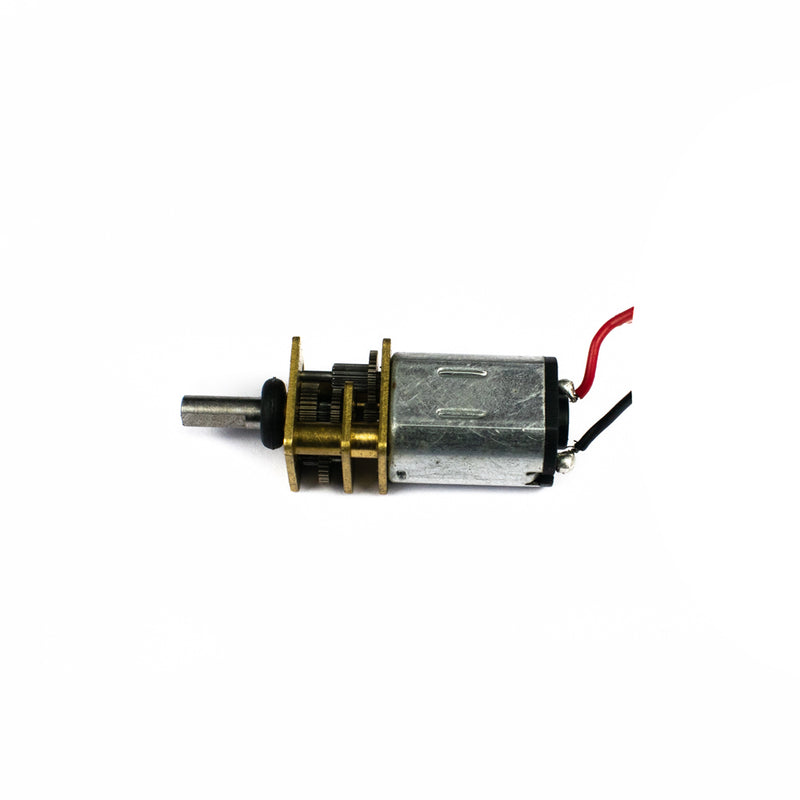

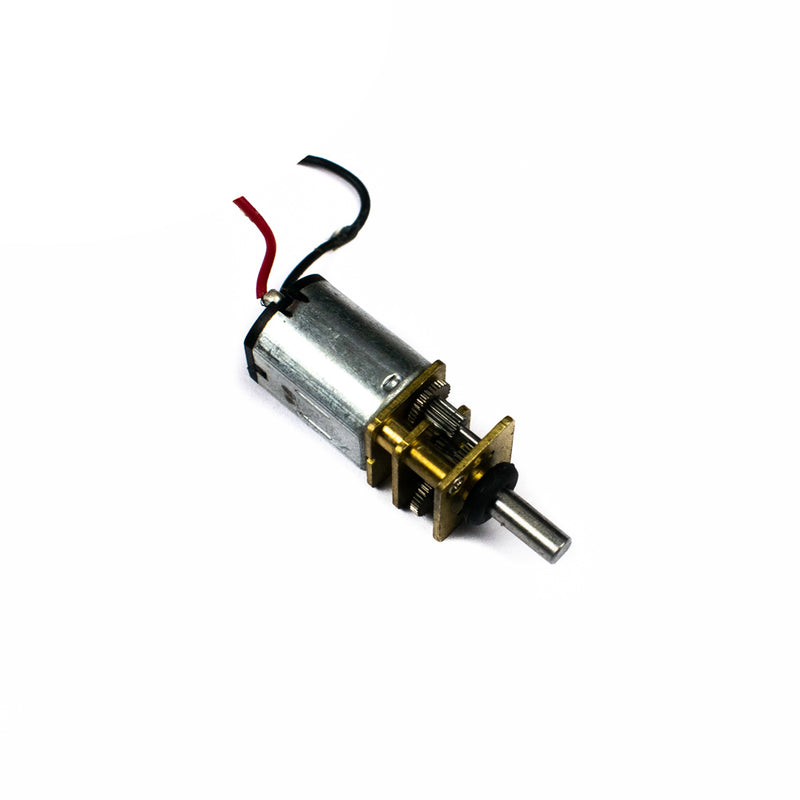

12mm N20 3V 35RPM Metal Gear Micro DC Motor

Save 6%
Sold By: HatchnHackSKU: A03-45

Price:
Sale price₹ 159.00 Regular price₹ 170.00

Tax included Shipping calculated at checkout

Out of stock

Description

This N20-3V-35 RPM Metal Gear Micro Motor is a DC motor with a small capacity, high torsion, all-metal gears, and long service life. Great replacement for the machine's rusted or disabled DC geared speed reduced motor. Widely used in Boats, cars, electric bicycles, fans, and electric locks. The N20 Micro Gear 3V 35 RPM DC Motor (Low Torque) is a low-RPM, lightweight motor with high torque. This motor is fitted with a gearbox assembly that increases the motor's torque. The D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter, with a cross-section of 10 to 12 mm. The motor's compact size allows it to fit into tight spaces in small-scale applications.

Specification
Current ≤45mA
Rated Voltage 3.0V DC
Operating Voltage 3V-6V DC
Torque 1.8 kg-cm
Speed 35 rpm @3V DC
Gear Ratio 1:298
Shaft Type D-type single side
Size 33.4mmx12mmx10mm
Motor Type DC Brush gear motor
Country of Origin China
