12mm Magnetic Control Reed Switch

Save 41%
Sold By: HatchnHackSKU: J08-17

Sale price₹ 16.00 Regular price₹ 27.00

Tax included Shipping calculated at checkout

Out of stock

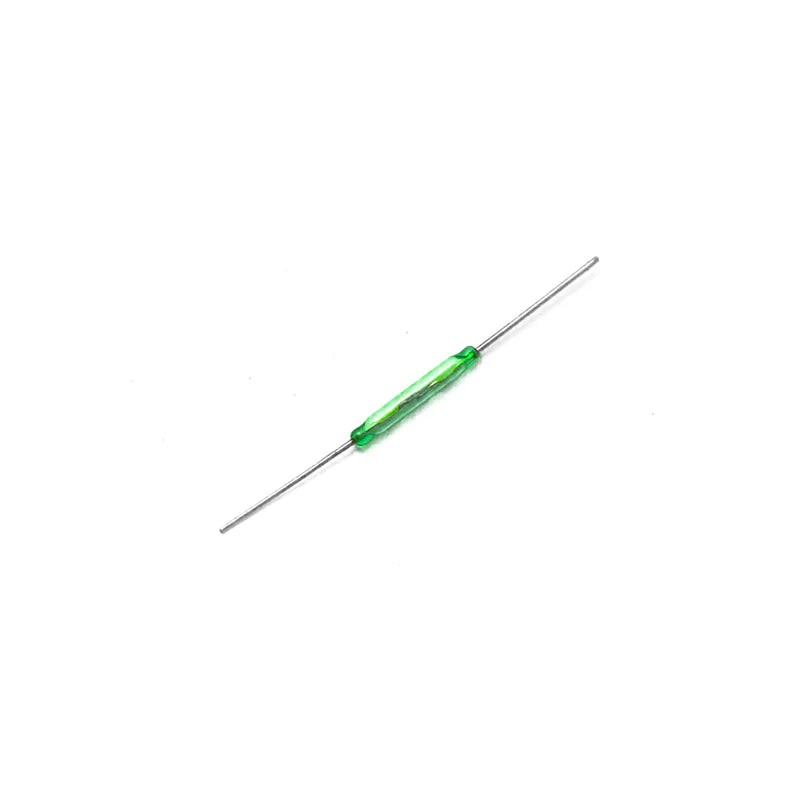

It's a 12mm Magnetic Control Reed Switch. In the presence of a magnetic field, a Reed Switch closes the circuit. It's a passive electrical switching component that regulates the flow of electricity in a circuit. It consists of a glass envelope containing two ferrous elastic reeds and an inert gas or vacuum. Both reeds are normally apart, but once the magnetic field approaches the sensor, they will come together, completing the circuit. Electromagnetic relays, weighing devices, level metres, and other devices can be used to detect if a washing machine, refrigerator, or photocopier door is open or closed. It works with Arduino, Raspberry Pi, PIC, and other microcontrollers. It can generate only digital output, not analog output.

  • Home and office automation.
  • Door or windows sensor.


  • Small Module.
  • Very easy to use.
  • Direct connection in the circuit.
    Size 12mm
    Frequency 100Hz
    Contact Resistance 20mΩ
    Insulation Resistance 100MΩ
    Operating Temperature -50°C to 140°C
    Country of Origin China
