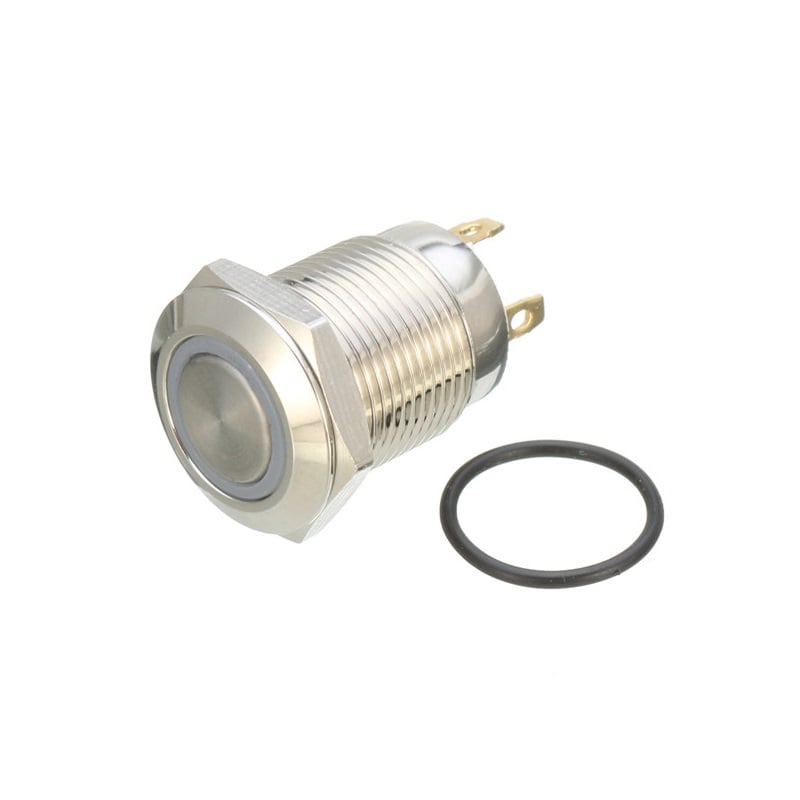

Description
- Stainless steel material for long-term use
- Inbuilt Colorful Ring illumination LED
- Available in Various LED Color
- Bright daylight LEDs
- Single pole push to make and Push to break Function
- Front and rear panel seal to IP67 & TVS protection
- Rubber ring and hexagon nut to fix, Waterproof and Dustproof
| Contact Type |
Solder Type |
|---|---|
| Contact Material |
Silver Alloy |
| Contact Resistance |
≤50 MΩ |
| Insulation Resistance (MΩ) |
≥1000 |
| Operating Temperature (°C): |
-20 to 55 |
| Operation Force |
About 3-5N |
| Operation Stroke |
2-5mm |
| Body Material |
Stainless Steel and Plastic |
| Mech. & Electrical Lifecycle |
≈ 50000 |
| Protection Standard |
IP66 |
| Dimensions in mm (LxWxH) |
26 x 14 (Length x Head Dia) |
| Weight (g): |
6 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 8 × 5 × 2 cm |
