Description

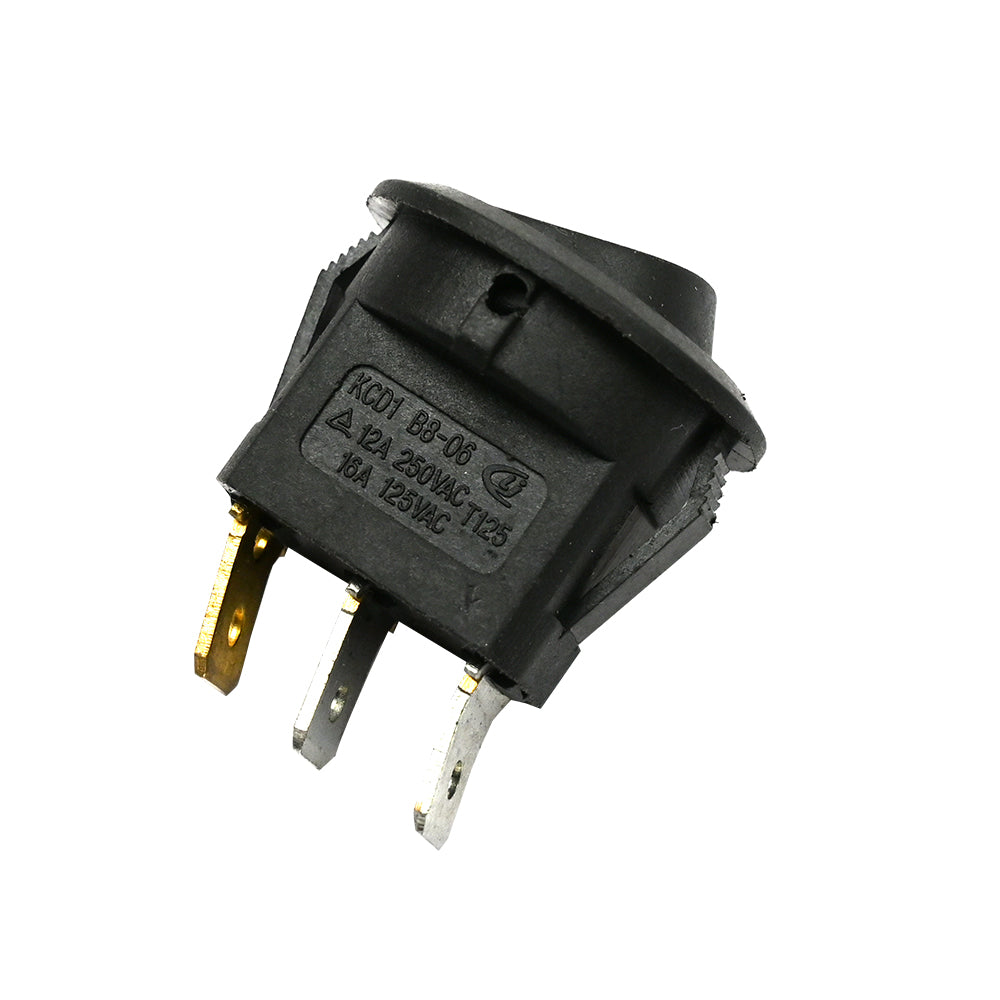

SPDT(Single Pole Double Throw) rocker switch is the simplest power control switch. SPDT stands for Single Pole Double Throw, which is a type of switch configuration commonly used in electrical and electronic circuits. An SPDT switch has three terminals: a common terminal (COM) and two other terminals typically labeled as Normally Open (NO) and Normally Closed (NC). The SPDT switch provides the ability to control a single circuit with two different positions. It can be used for various applications, such as selecting between two different power sources, reversing the polarity of a motor, or toggling between two different devices in a circuit.
Features:
- Its current rating is 12A and 16A
- Its voltage rating is 250V and 125V
- It has three Terminal
- It has an LED on Button
- The colour of LED is Red
| Specifications | |
|---|---|
| Mounting type | Panel Mount |
| Colour | Black |
| Type | Rocker Switch |
| Switching Type | ON-OFF |
| Current | 12A, 16A |
| Voltage | 250V,125V |
| Dimension | 23x22mm |
| No of Pin | 3 |
