Description

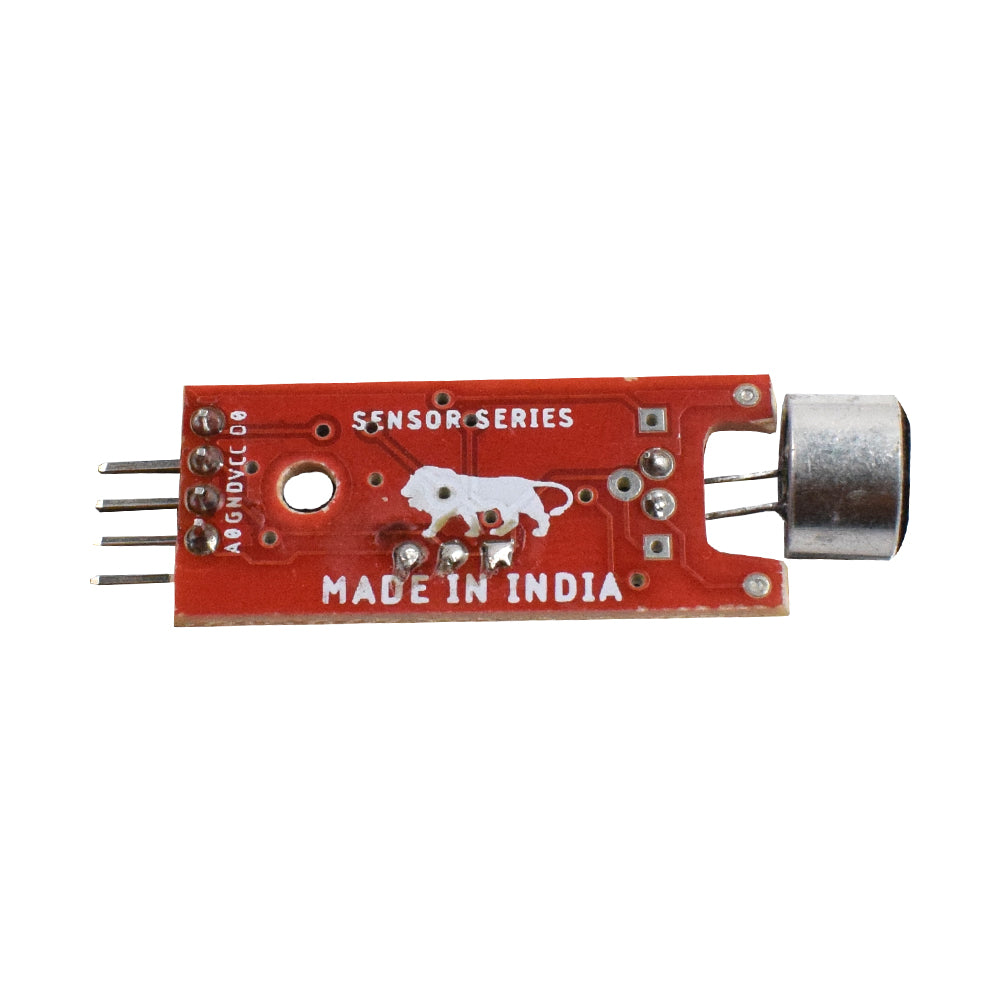

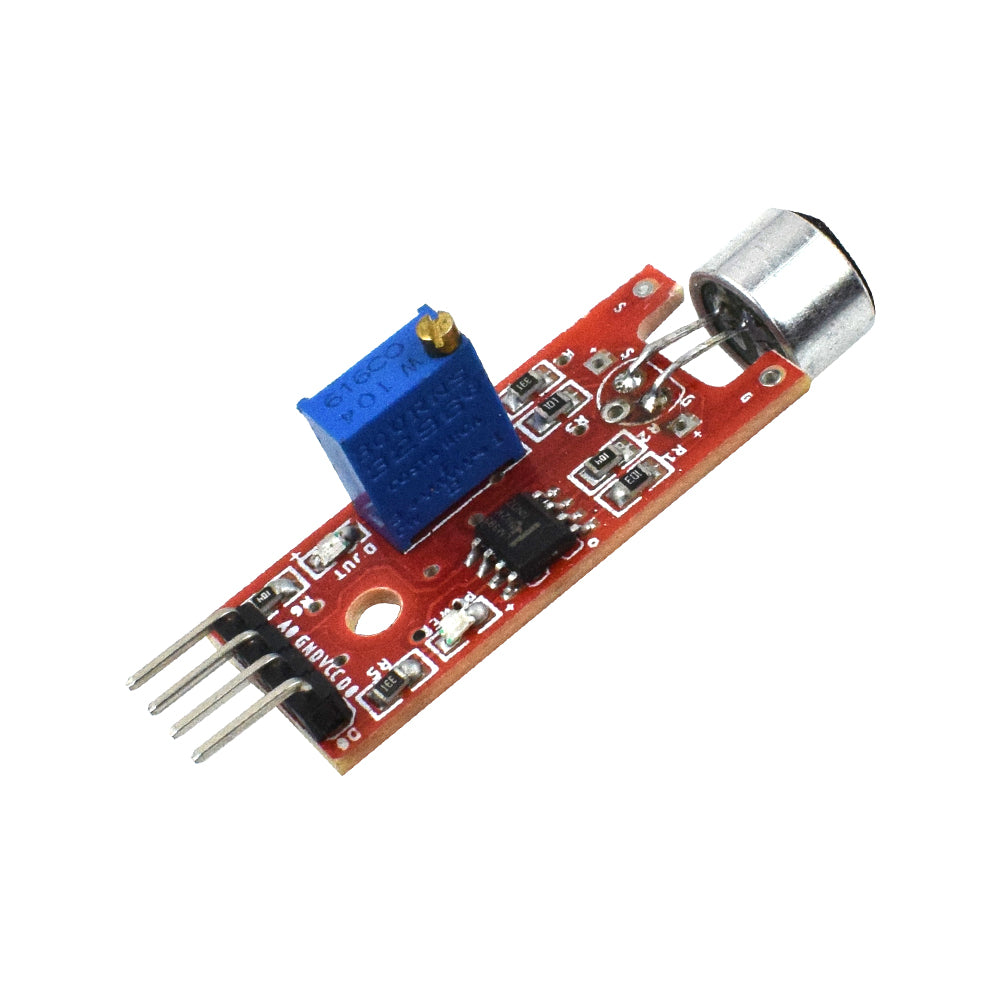

Its Sound detection Sensor module which has 4 pins which are Analog output , GND, Digital , VCC. GND is connected to the ground and VCC is connected to the positive terminal of the power supply. There is a potentiometer onboard to calibrate the digital output of the module. By potentiometer, a threshold volume can be set and when this threshold volume is exceeded status LED will light up and digital output will be low. The other LED glows when the device is powered. Applications like voice switch Projects and loudness level indicator.
Features
- Uses an electret condenser microphone
- Signal Output indication
- Both Analog and Digital Output are given
- The comparator output is light
- Electric condenser microphone
- Low-level output signal used for sound control light
- Its made in India
Specifications
| Working voltage | DC 3.3-5 V |
| Op-Amp IC | LM393 |
| Make | India |
| Induction distance | 0.5M |
| Board PCB Size | 36x16x12mm |
| Output Type | Both Analog and Digital |
| Trim-pot Value | 100k ohm |
| Microphone Type | Electret Condenser Microphone |
| Mic Diameter | 9.6mm |
| Country of Origin | China |
