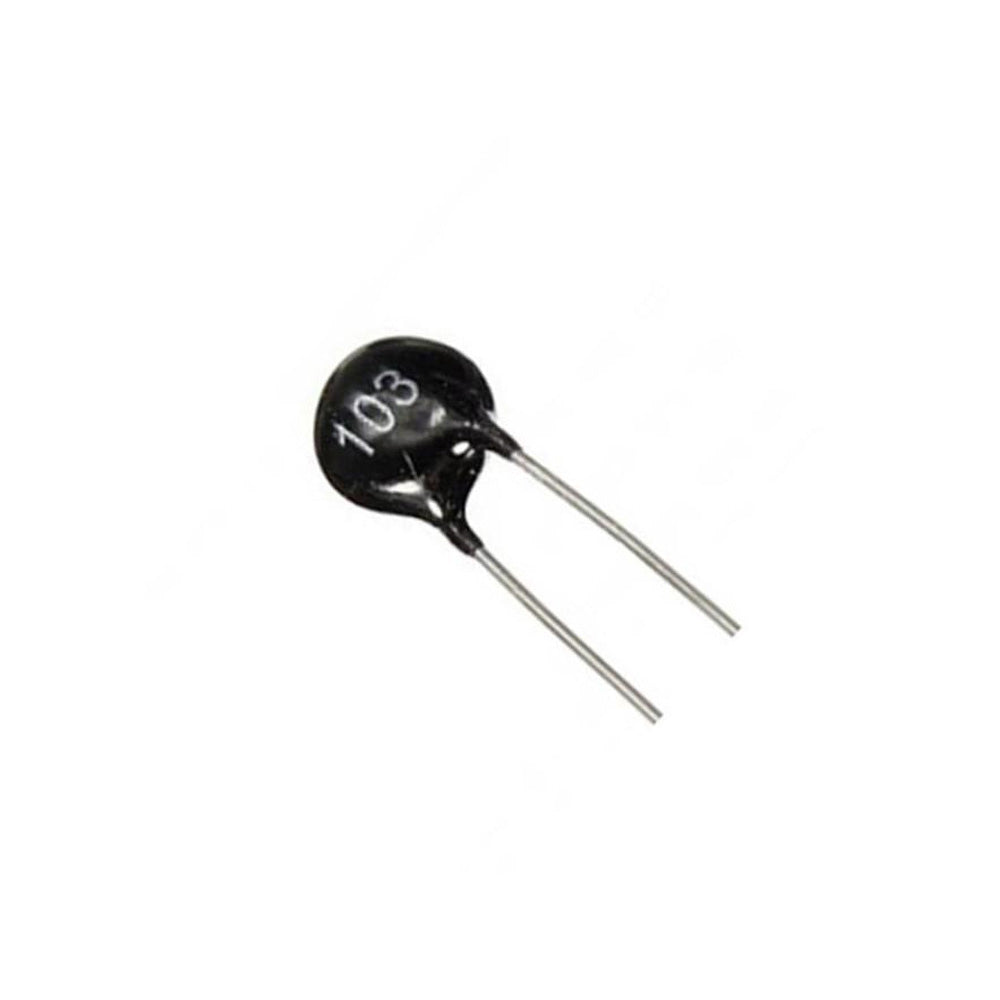

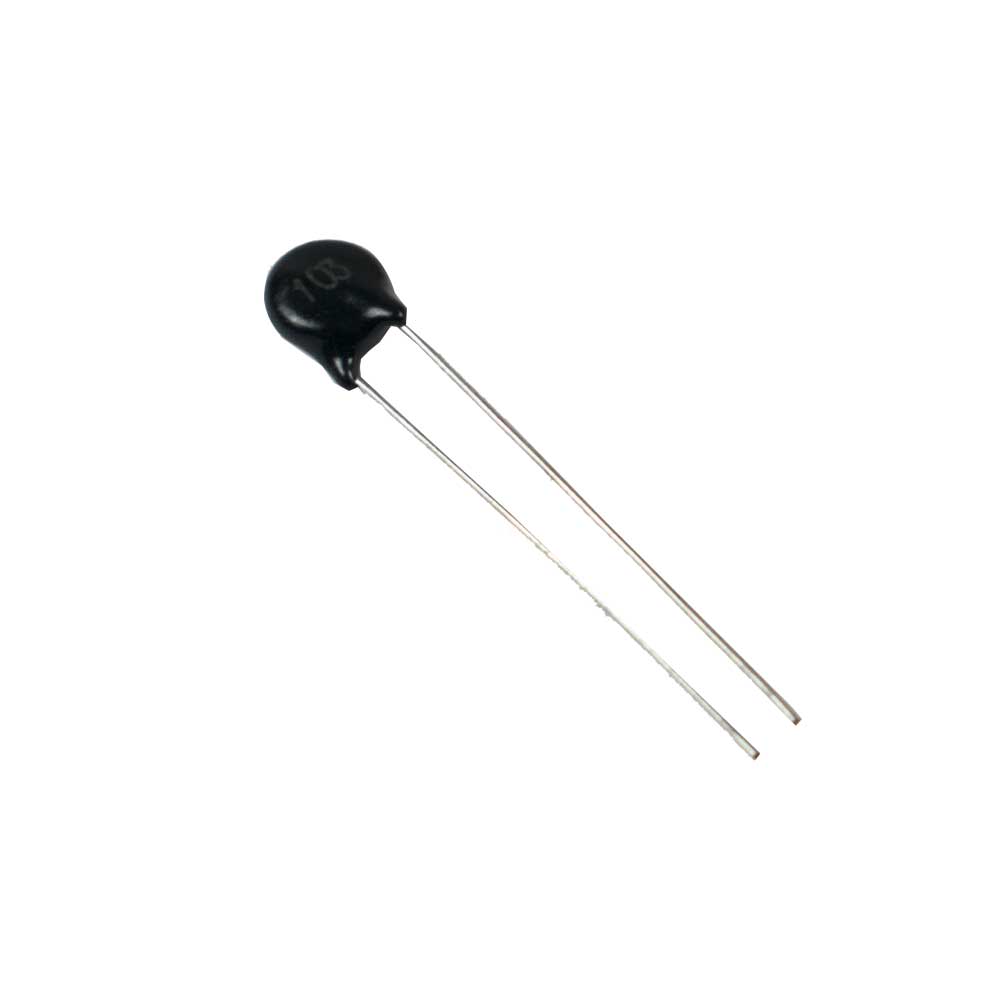

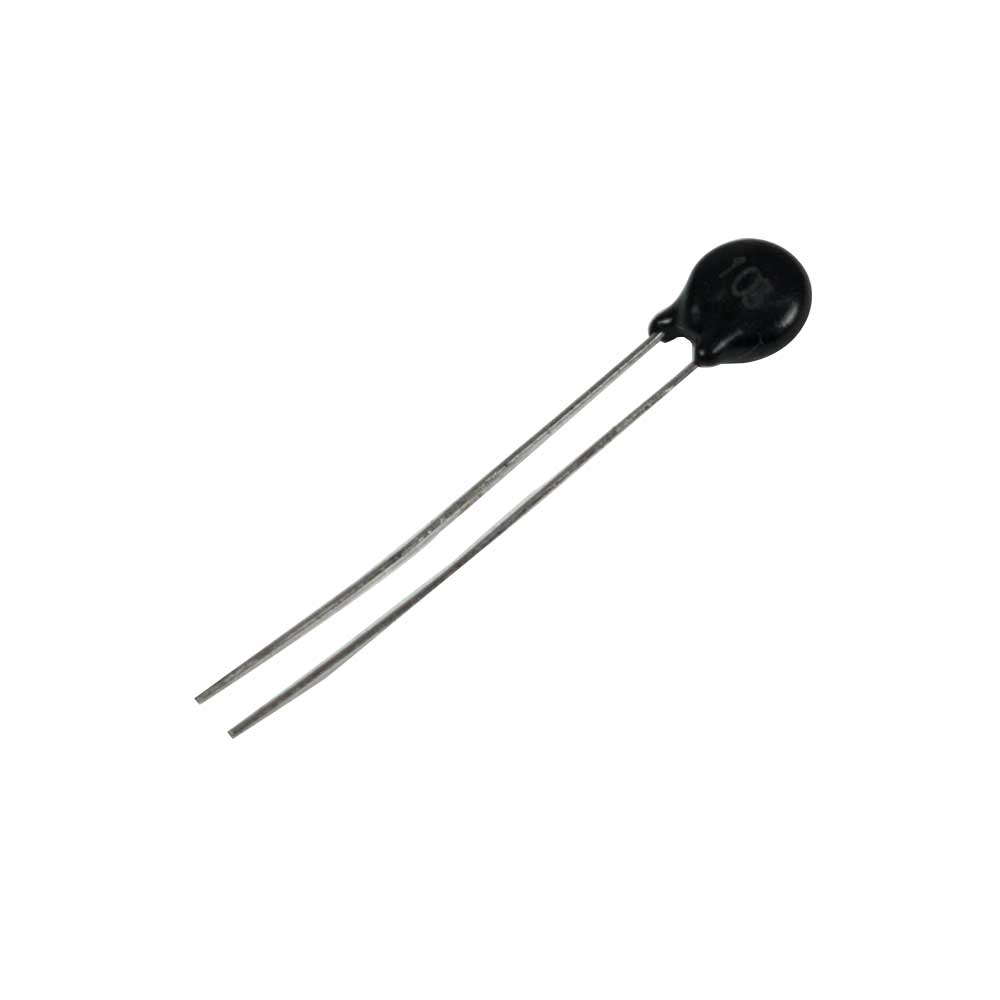

10K Ohm NTC Thermistor is a special type of resistor whose value changes in accordance with its surrounding temperature. It is made by combining several metal oxides. This is an NTC (Negative Temperature Coefficient) type thermistor. Hence as the temperature increases then the resistance of the thermistor decreases and vice versa. It provides resistance of 10K ohm at 25° C.
10K Ohm NTC Thermistor can measure temperature in the range of -55°C to 125°C. It is a very economical sensor. The thermal cooling time constant for this NTC thermistor (in the air) is less than equal to 20 seconds. The thermistor is widely used in freezers, air conditioners, fire alarms, temperature protection in battery charging systems, engine temperature control, etc.
|Resistance at 25°C||10K +- 1%|
|B-value (material constant)||3950+- 1%|
|Dissipation factor (loss-rate of the energy of a mode of oscillation) δ th(in the air)||approx.7.5mW/K|
|Thermal cooling time constant||<= (in air) 20 seconds|
|Thermistor temperature range||-55 °C to 125 °C|
|Lead Spacing||5 mm|
