Description

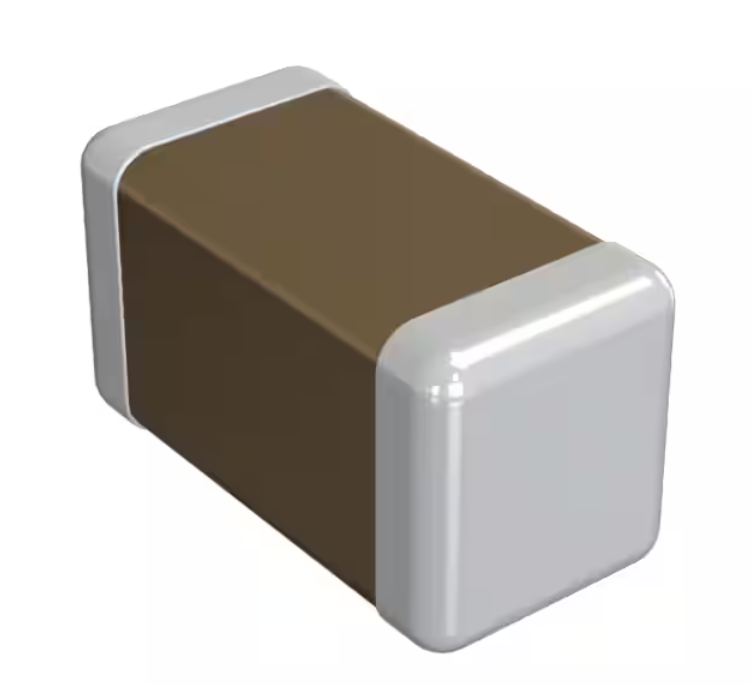

The Ceramic Capacitor 100pF 5% 2000V NP0 in a 1210 package is a high-quality capacitor designed for applications requiring high voltage tolerance and stability. With its 100pF capacitance, 5% tolerance, and NP0 temperature coefficient, this capacitor ensures reliable performance in demanding electronic circuits.
Features:
- Capacitance: 100pF (picofarad)
- Tolerance: 5%
- Voltage Rating: 2000V
- Temperature Coefficient: NP0 (C0G)
- Package Type: 1210 (imperial code, dimensions approximately 3.30mm x 2.50mm)
- Technology: Ceramic
- High Voltage Tolerance: Suitable for applications requiring high voltage levels
- Stable Performance: NP0 temperature coefficient ensures minimal capacitance change over a wide temperature range
- Reliable and Durable: Built to withstand challenging environmental conditions
- RoHS Compliant: Environmentally friendly and lead-free
Applications:
- High Voltage Power Supplies: Suitable for power supply circuits requiring high voltage filtering and decoupling.
- RF and Microwave Applications: Used in RF filters, tuning circuits, and impedance-matching networks.
- Medical Equipment: Ideal for medical devices, monitoring systems, and diagnostic equipment.
- Industrial Electronics: Reliable performance in industrial control systems, automation equipment, and instrumentation.
- Telecommunications: Suitable for telecommunications equipment, base stations, and data communication systems.
- Automotive Electronics: Designed to meet the demands of automotive applications, including ignition systems, motor drives, and electronic control units.
| Specifications | |
|---|---|
| Material | Ceramic |
| Capacitance | 100pF |
| Package | 1210 package |
| Tolerance | 5% |
| Mounting Type | SMD |
| Type | Ceramic Capacitor |
| Operating Voltage | 2000V |
