Description

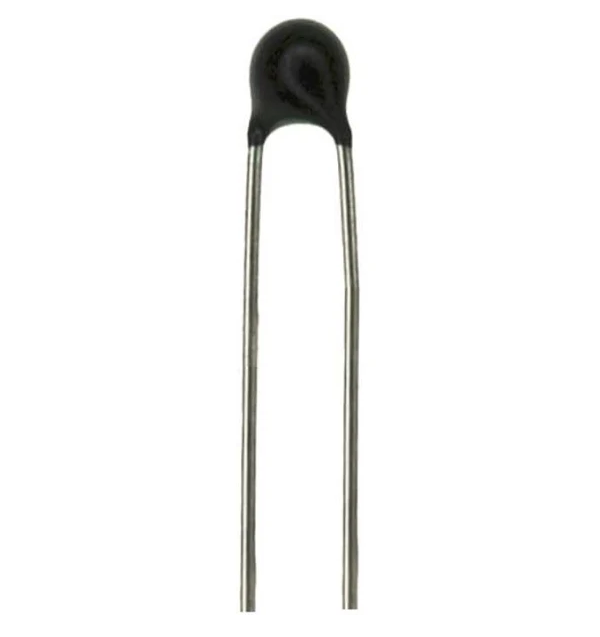

100K Ohm NTC Thermistor is a special type of resistor whose value changes in accordance with its surrounding temperature. It is made by combining several metal oxides. This is an NTC (Negative Temperature Coefficient) type thermistor. Hence as the temperature increases then the resistance of the thermistor decreases and vice versa. It provides resistance of 100K ohm at 30° C. It is a very economical sensor. The thermal cooling time constant for this NTC thermistor (in the air) is less than equal to 20 seconds. The thermistor is widely used in freezers‚ air conditioners‚ fire alarms‚ temperature protection in battery charging systems‚ engine temperature control‚ etc.
Applications
The 100K ohm NTC thermistor is commonly used in temperature measurement and control systems. It can be employed in applications such as thermostats, temperature monitoring circuits, environmental sensing, and temperature compensation.
| Specifications | |
|---|---|
| No. Of Terminals | 2 |
| Resistance | 100K Ohm |
| Operating Temperature | -30°C to +125°C |
| Tolerance | 10% |
| Mounting Type | Through Hole |
| Type | NTC Thermistor |
