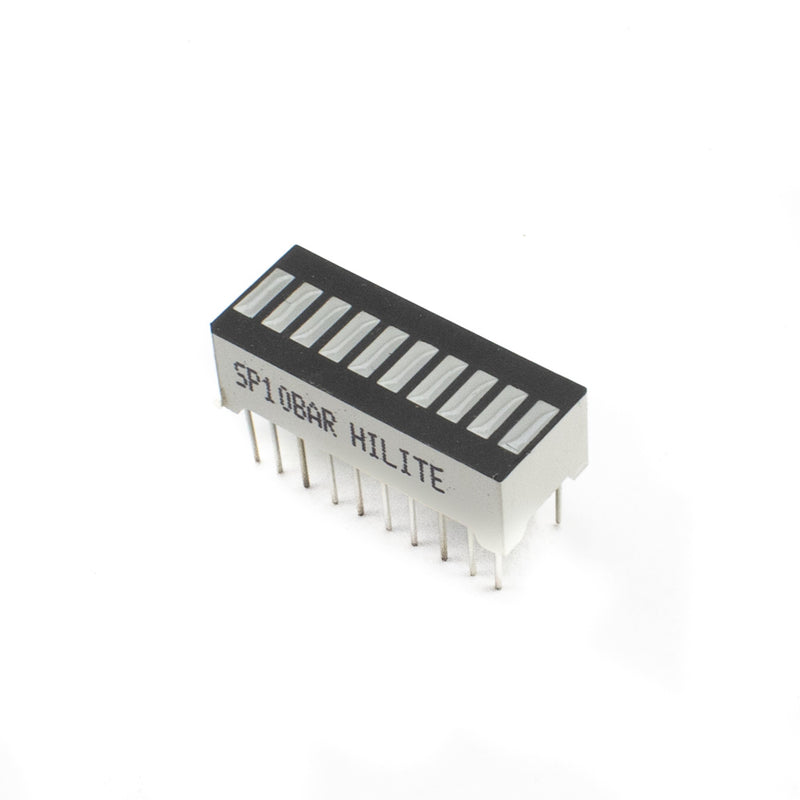

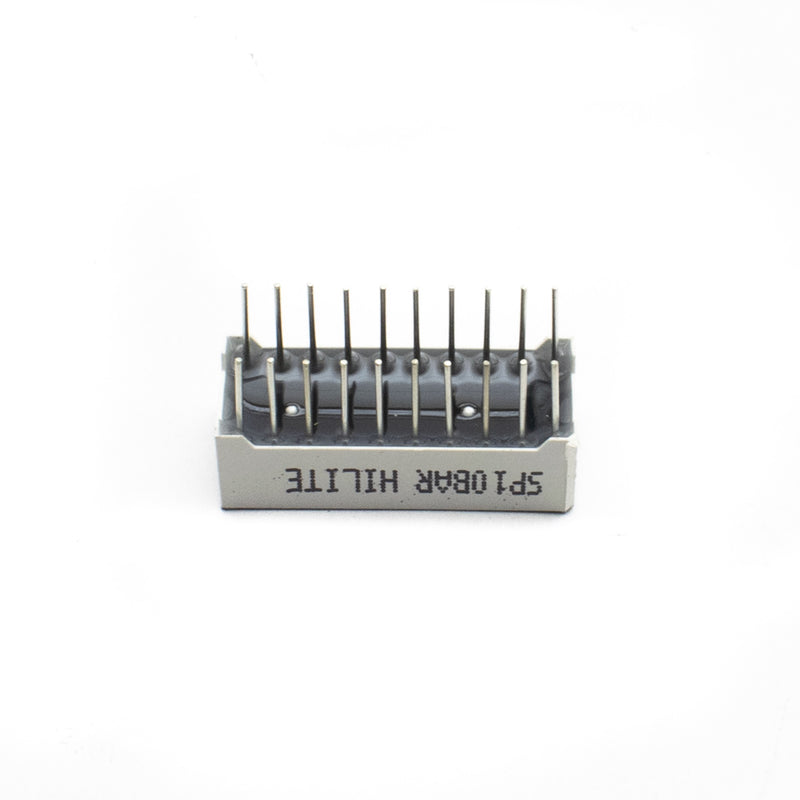

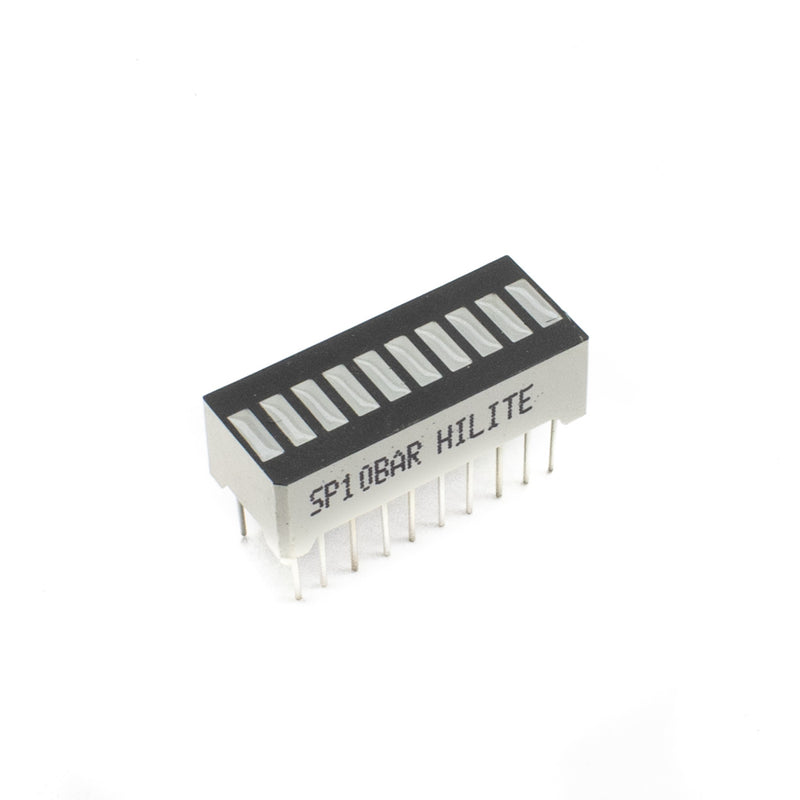

10 Segment Digital LED Display Bar Red Colour

Save 18%
Sold By: HatchnHackSKU: 9J23

Sale price₹ 27.00 Regular price₹ 33.00

Tax included Shipping calculated at checkout

Out of stock


This attractive LED bar graph is used to create a small linear display with glowing red colour. In the plastic body, there are ten LEDs. This display is bright, beautiful, and funky with nice diffused rectangular lenses for a striking look. There are 20 pins, 10 on each side, with 2.54mm pitch spacing, allowing you to simply put it onto a breadboard and leave plenty of room for wiring. This device has a small dimension and a simple interface. Each of the LEDs in this array has its own set of pins and may be operated independently. This 10 segments digital red LED bar display is commonly used in goods that require to indicate the level of something, such as the battery level, the liquid level in the tank, temperature level as a temperature gauge, and so on.


  • 10 Segment Digital Red LED Bar Display.
  • Ultra brightness indicator light
  • As an indicator for signal strength, audio signal, power status, etc
  • Art display and DIY project
  • Digital readout display
  • Low Current Consumption
LED Colour Red
Material Plastic
Display type 10 segment Led
Distance between the pins 2.54mm
DC forward current 30mA
No. of pins 20
Operating Temperature -40°C to +85°C
Operating Voltage 5V
L*B*H 25.5*10.1*14.2
Country of Origin China
