Description

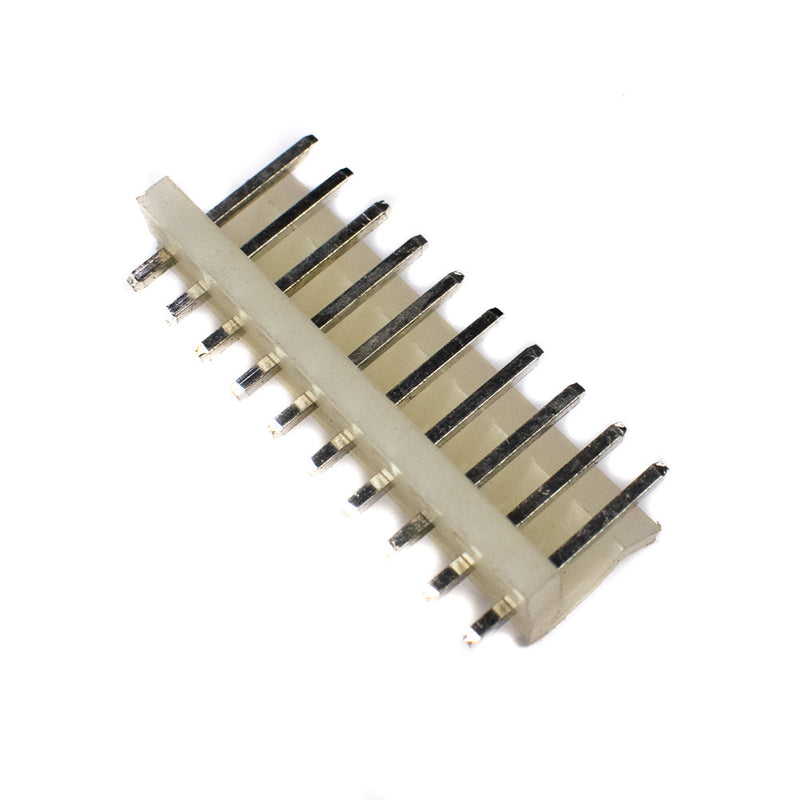

This is a Male KK396 connector with 10 pins. It's a multipurpose connector. Board-to-board and wire-to-board applications are ideal for the KK396 Connector System. These PCB pin headers have a friction locking mechanism for a secure mating connection and can be used in a wide range of applications in the automotive, industrial, consumer, data transmission, and telecommunications. RoHS lead-free initiatives are supported by the KK396 connector system.
Features
- Use of electrical fire retardant material.
- Solid and durable.
- Safe and easy to install.
- RoHS compliant.
- AC power supply to PCs and lab equipment.
- Used in all types of RCs( cars, boats, planes).
- Also used in CCTV connections, pick-ups, etc.
Specifications
| Connector Type | KK396 Connector |
| No. of Pins | 10 |
| Pitch | 3.96 mm |
| Type | Male |
| Current Rating | 7A |
| Temperature | 260°C |
| Quantity | 1 Pcs |
| Country of Origin | China |
