Description

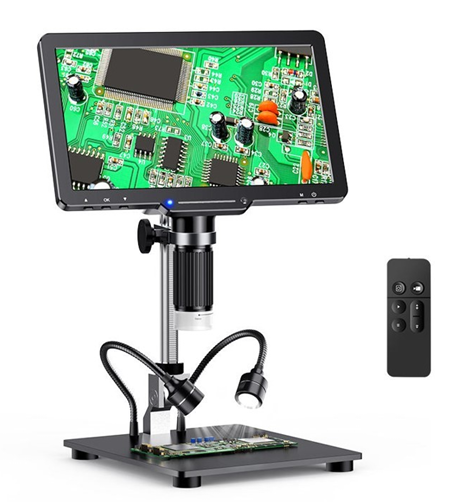

The GI LP101 is a versatile 10-inch display digital microscope designed for precision inspection and observation. With 1200x magnification, it offers detailed views of various objects and specimens. The microscope is equipped with HDMI and USB outputs, providing flexibility in connecting to external devices for data transfer or display. Extra LED lights ensure optimal illumination, enhancing visibility in different lighting conditions. Additionally, the included batteries offer portability and uninterrupted usage. Whether for scientific research, industrial applications, or educational purposes, the GI LP101 delivers reliable performance and clear imaging capabilities, making it a valuable tool for professionals and enthusiasts alike.
Specifications
- Video Maximum Pixel: 1080P
- Screen: 10.1-inch IPS LCD display with 1024*600 resolution
- Lens Optic Size: 1/2.8"
- Photo Resolution: 2M,3M,5M,8M,10M,12M,16M,20M, 24M,
- Video Resolution: 720P, 1080P
- Video Format: MP4
- Focus Mode: Manual
- Picture Format: JPG
- Illuminant: 8 LED lights (brightness adjustable)
- PC Operating System: Windows 7, Windows 8.1, Windows10, Mac OS x 12 or higher
- Interface and Signal Transmission Mode: Micro/USB 2.0/ Mini HDMI
- Operating Temperature: -10°C~+55°C
- Operating Humidity: 30%-85%RH
- Working Current: 700mA
- Power Dissipation: 3.5W
- Language: English, French, Spanish, Portuguese, German, Italian, Simplified Chinese, Traditional Chinese, Russian, Japanese, Korean
Work with TV
Operating steps
Step 1. Connect LP101 to the TV via a HDMI cable
Step 2. After successful HDMI connection, the microscope will be
turned on and the image will appear on the display. At this time,
microscope button and remote-control button can be operated;
when operating photo/video, the file will be automatically saved
in TF card.
Photo mode
When the icon in the upper left corner of the microscope is Photo
mode when the microscope is on, short press the Menu button on
the microscope or short press the Photo button on the remote
control, it can switch to Photo mode.
Video mode
When the icon on the upper left corner of the microscope is "it is in
Video mode, when the microscope is on, short press the Menu
button on the microscope or short press the Video button on the
remote control, it can switch to Video mode
Work with PC
Software download - Download the applicable software
Packing List
Microscope, Bracket, Base, Type-C cable, Mini HDMI Cable, USB
Cable, Straightdge, User Manual, Wireless Remote Control
