Description

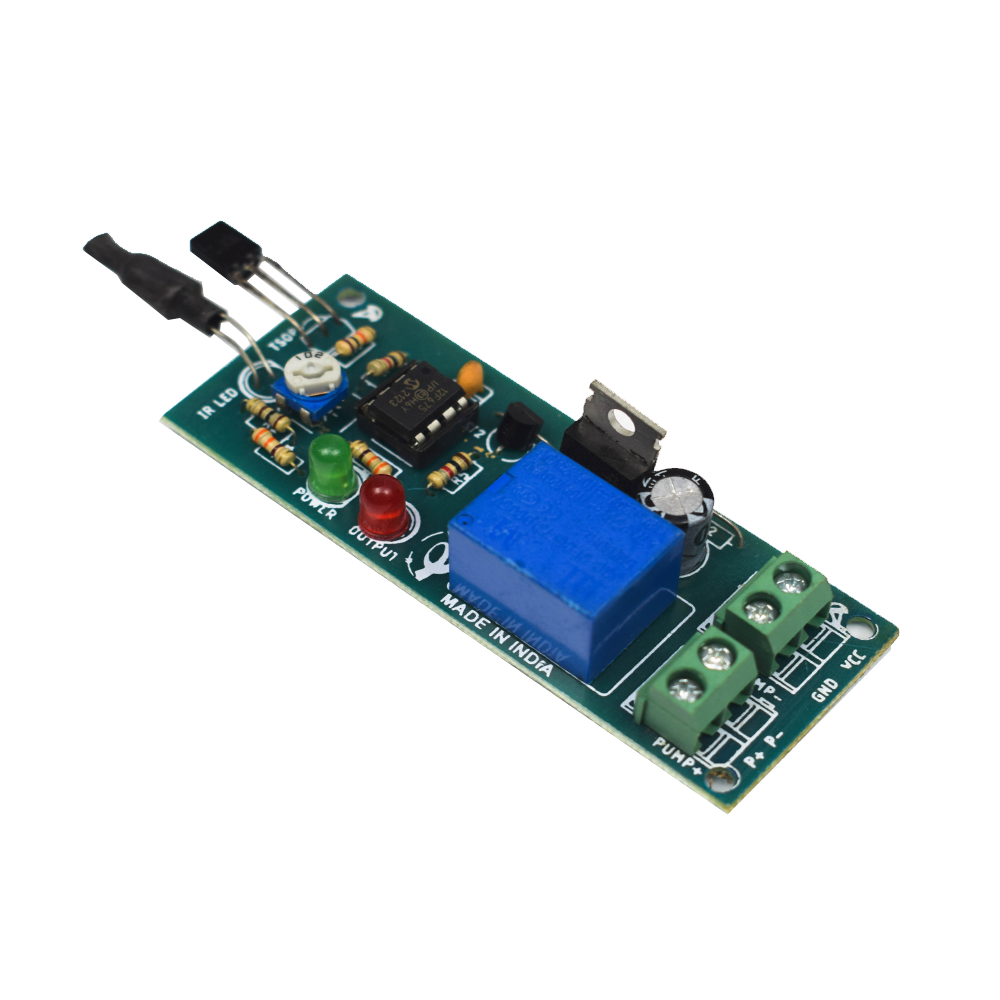

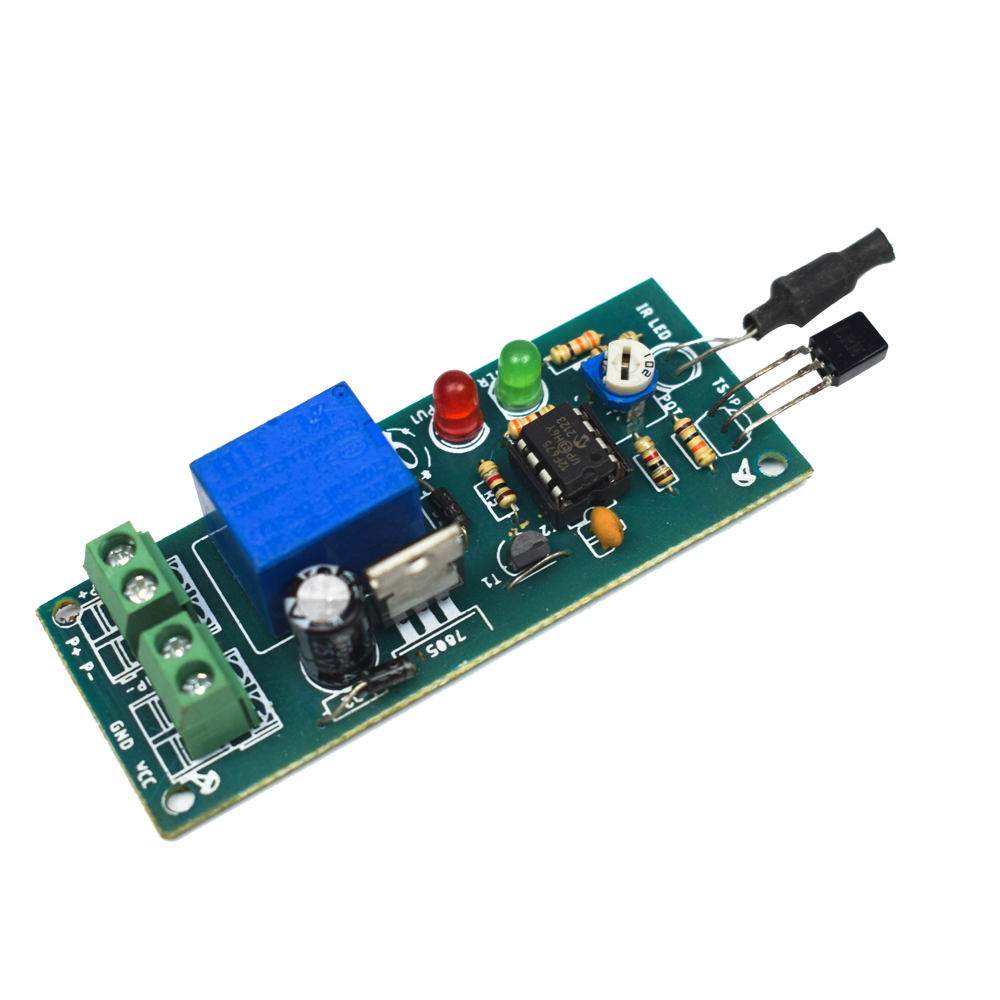

This is an IR Detector Single Channel Relay Control Module with Range Adjuster. The operating current of this module is 5V DC; hence 5V is supplied to the Vcc. GND is connected to the ground of the system. Out pin gives an active high output when any obstacle is detected. A potentiometer is also there in the module to adjust the detection distance. This is not a normal IR Sensor, but it is a fully programmed IR Sensor with a Pump set in which users can adjust the timer & ranger as per their choice; apart from this, it requires only 9/12 Volt to operate, which means it can work on rechargeable batteries.
Specifications
| Product | IR Detector 1 Channel relay control module |
| Type | IR Relay Control Module |
| Operating Voltage | 5V DC |
| Optimal Sensing Distance | 2-30 cm |
| Current Rating | 1A |
| No. of Channel | 01 |
| Operated IC or MCU |
PIC12F675 |
| Dimensions(LxWxH) | 80 x 31 x 20 (mm) |
| Make | Make in India |
| Country of Origin | China |
