Description

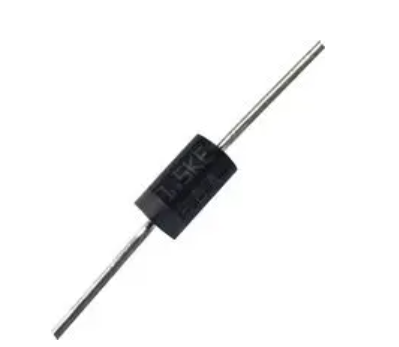

It's a 1.5KE220A TVS Diodes Transient Voltage Suppressor. These diodes provide high overvoltage protection and instantaneous response to transient overvoltage by clamping action. Transit 1.5KE series are used to protect voltage-sensitive devices such as low voltage supplied ICs. The unidirectional type TVS diodes are suitable for DC applications and bidirectional type TVS diodes are suitable for AC applications.
Features
- It has high surge capability
- It's package is DO-201
- It has Peak pulse power of 1500W
- It's Reverse Standoff Voltage is 188V
- It's Clamping Voltage Max is 328V
| Specifications | |
|---|---|
| No. of Pins | 2 |
| Breakdown Volatge | 6.8V to 440V |
| Part Number | 1.5KE220A |
| Mounting Style | Through hole |
| Operating temperature | 175°C |
| Type | Diode |
