Description

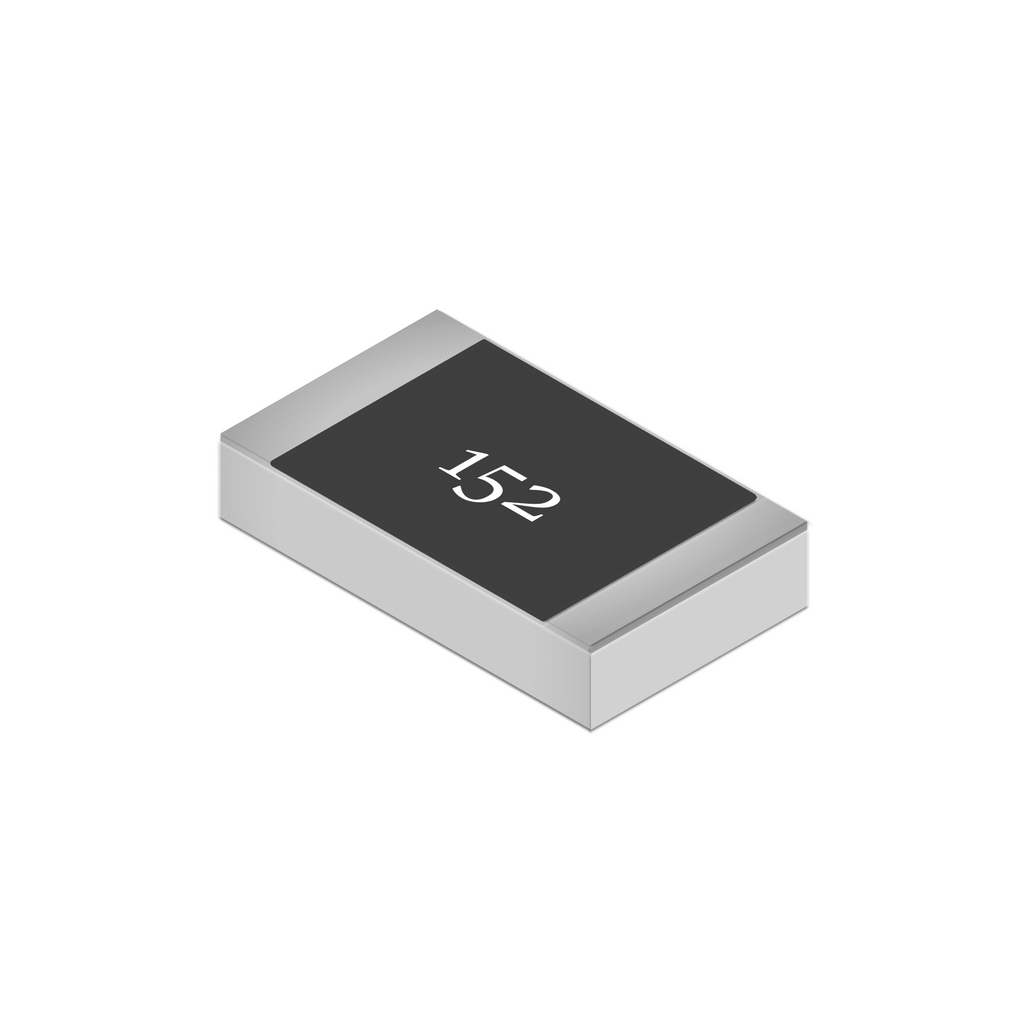

This is a SMD Resistor with a resistance of 1.5K Ohms. The resistor has a low tolerance of only 5%. The 1.5K ohm SMD Resistor is a conventional thick film chip resistor and is a type of surface-mount resistor. SMD resistors in the 0805 package have a greater voltage rating. This electrode architecture is extremely durable and suited for a wide range of applications, including smartphones, tablets, laptops, televisions, and other electronic devices. This is a high-quality Surface Mount Resistor with a 3-digit resistance code and outstanding solderability. This is a low-value, high-power resistor in general.
Features
- Highly reliable electrode construction
- Compatible for all soldering processes
- Highly stable in auto-placement surface mounting application
- Barrier layer end termination
Applications:
- Consumer Electronics
- Portable Devices
- Industrial Applications
- Power Management
- DIY mini PCB projects
Specifications
| Resistance | 1.5K ohm |
| Resistor Chip size | 0805 |
| Tolerance | 5% |
| Power | 0.5W |
| Temperature Range | -55°C to +125°C |
| Mounting Type | Surface mount |
| No. of Terminals | 2 |
| Temperature coefficient | ±100ppm/°C |
| Quantity | 1 Pcs |
| Country of Origin | China |
