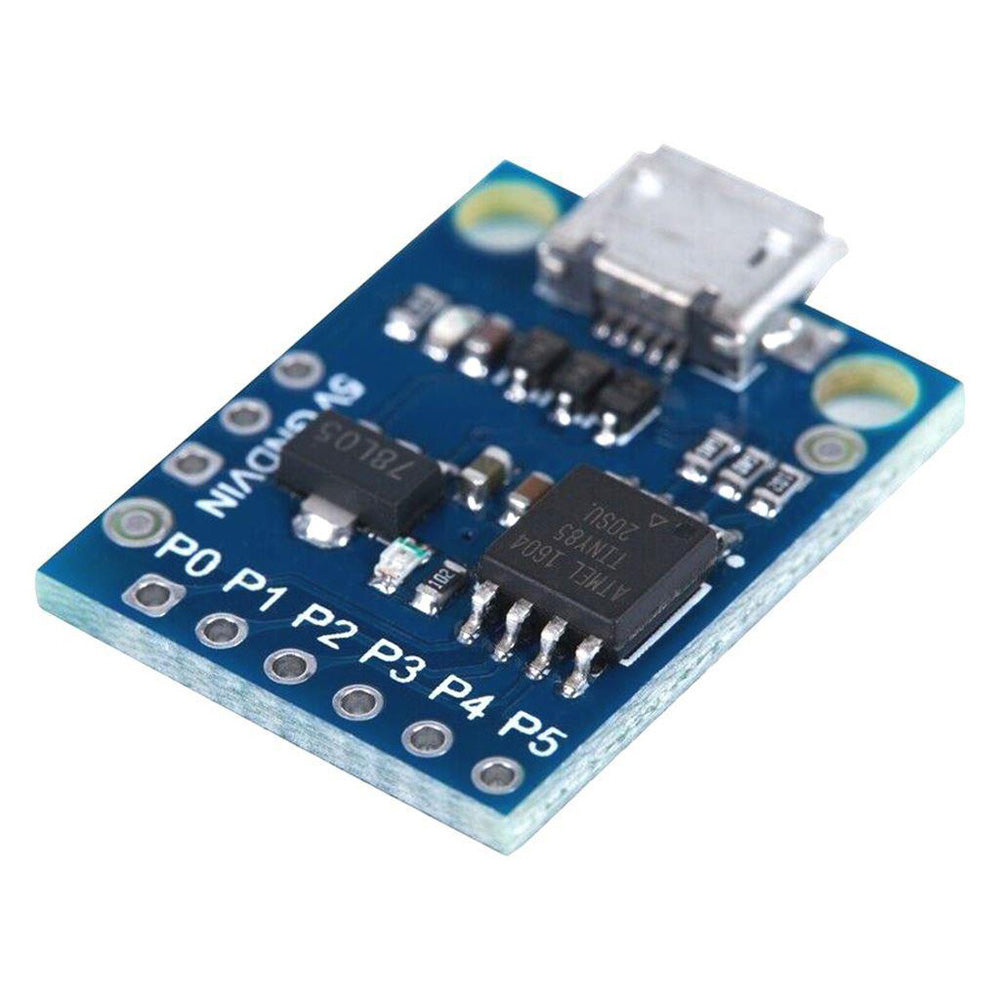

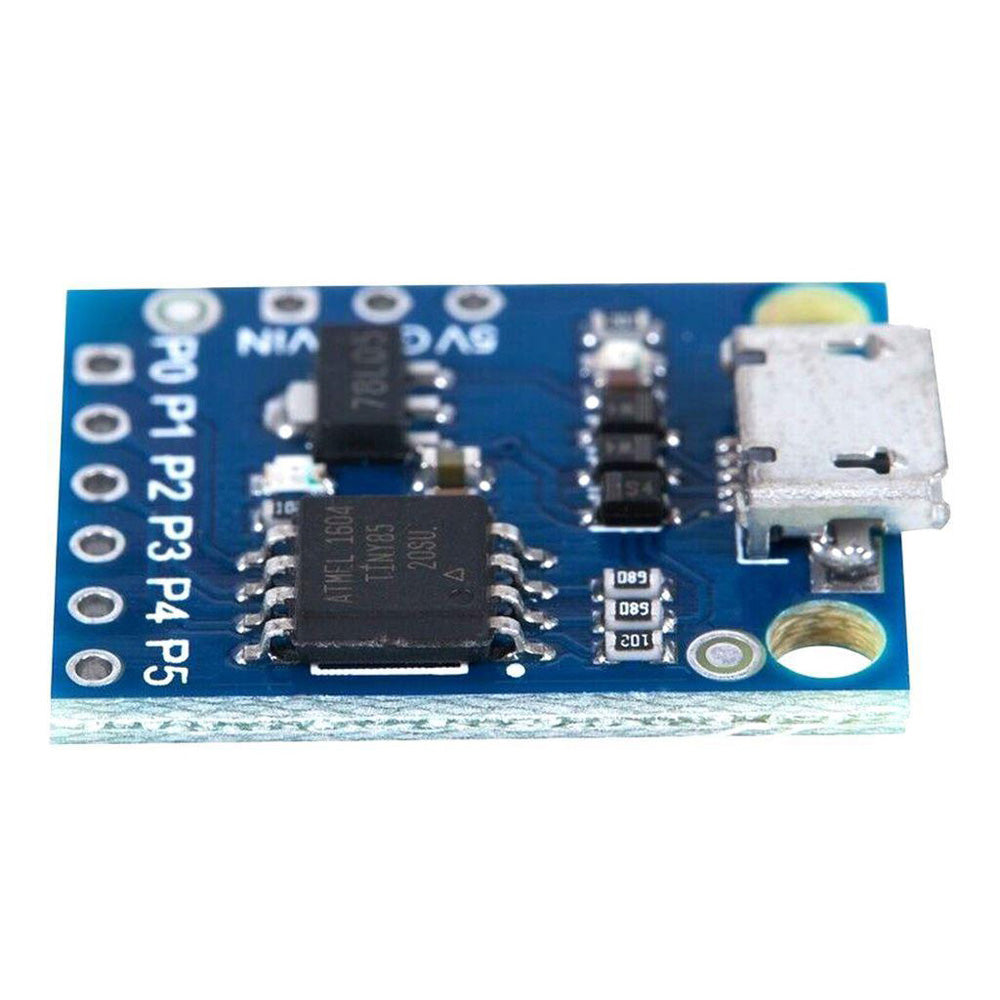

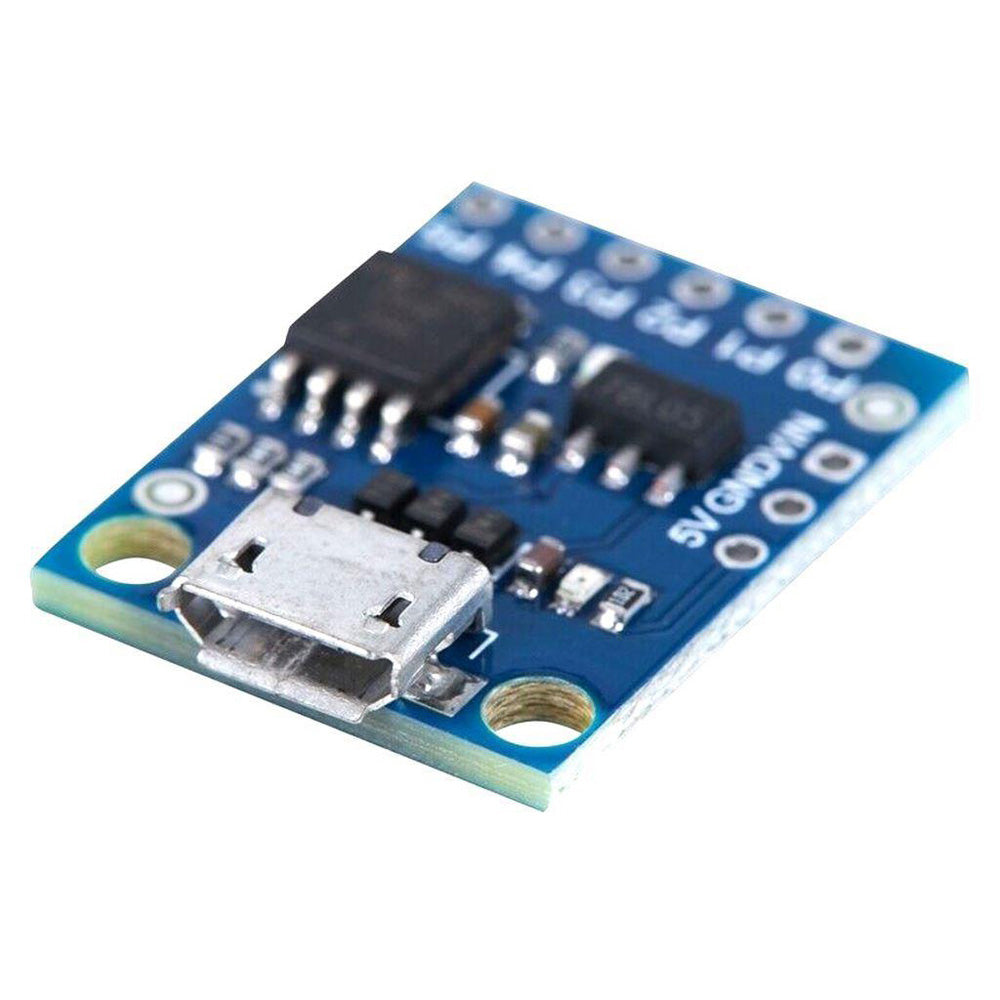

Attiny85 Micro-USB module
Rated 3.5/5 based on 11 customer reviews
Attiny85 Micro-USB module

Attiny85 Micro-USB module

  • Operating Voltage: 3-5.5V
  • Digital I/O Pins: 6
  • PWM Pins: 3
  • Analog input Pins: 4
  • 8KB Flash
Out of Stock
Product SKU: 6F30
235.00
₹ 199.15 + ₹ 35.85 (18% GST)
Successful pre-order.Thanks for contacting us!
  • Order within
  • Attiny85 Micro-USB module
    Attiny85 Micro-USB module ₹ 235.00
This product: Attiny85 Micro-USB module
₹ 235.00 23500
₹ 235.00

If you want to embed a microcontroller into a project and are looking for something smaller and cheaper than an Arduino and you don’t need a lot of I/O pins or code space, the ATtiny85 can be a good solution.

Pin Configuration

 Power The module can be powered off the USB connector as with any Arduino boards that have USB connectors.
USB Interface The module uses pins 3 & 4 for USB communications.
I2C Interface The I2C interface is connected to pin 0 (SDA) and pin 2 (SCL).
SPI Interface The SPI interface is connected to pin 0 (MOSI), pin 1 (MISO), and pin 2 (SCK).
Digital I/O Pins 0,1,2,3,4,5 are capable of digital I/O.
Analog Outputs Pins 0 & 1 PWM operates at 504Hz while pin 4 operates at a higher 1007Hz.
Analog Inputs The ATtiny85 has a built-in 10-bit ADC and can read Analog voltages on 4 of the pins.


Features

  • It has an Atmel ATtiny85 processor running at 16.5 MH
  • With a micro-USB connector
  • There are 3 PWM shared with the digital I/O
  • The 4 Analog inputs shared with digital I/O
  • The I2C and SPI interface shared with digital I/O
  • It has external interrupt capability
  • It operates from 3-5.5 V or 7-12 V



If you want to embed a microcontroller into a project and are looking for something smaller and cheaper than an Arduino and you don’t need a lot of I/O pins or code space, the ATtiny85 can be a good solution.

Pin Configuration

 Power The module can be powered off the USB connector as with any Arduino boards that have USB connectors.
USB Interface The module uses pins 3 & 4 for USB communications.
I2C Interface The I2C interface is connected to pin 0 (SDA) and pin 2 (SCL).
SPI Interface The SPI interface is connected to pin 0 (MOSI), pin 1 (MISO), and pin 2 (SCK).
Digital I/O Pins 0,1,2,3,4,5 are capable of digital I/O.
Analog Outputs Pins 0 & 1 PWM operates at 504Hz while pin 4 operates at a higher 1007Hz.
Analog Inputs The ATtiny85 has a built-in 10-bit ADC and can read Analog voltages on 4 of the pins.


Features

  • It has an Atmel ATtiny85 processor running at 16.5 MH
  • With a micro-USB connector
  • There are 3 PWM shared with the digital I/O
  • The 4 Analog inputs shared with digital I/O
  • The I2C and SPI interface shared with digital I/O
  • It has external interrupt capability
  • It operates from 3-5.5 V or 7-12 V



 Microcontroller Atmel ATtiny85
5V Input Operating Voltage Range 3 – 5.5 V
VIN Input Voltage (recommended) 7-12 V
Digital I/O Pins 6
PWM I/O Pins (Shared with Digital I/O) 3
Analog Input Pins (Shared with Digital I/O) 4
DC Current per I/O Pin 20 mA
Flash Memory 8 KBytes
SRAM 512 Bytes
EEPROM 512 Bytes
Clock Speed 16.5 MHz
Power Consumption (Max for Package) 200 mA
Built-in LED Attached to digital I/O Pin 1
USB Connector Style Micro-B Female
