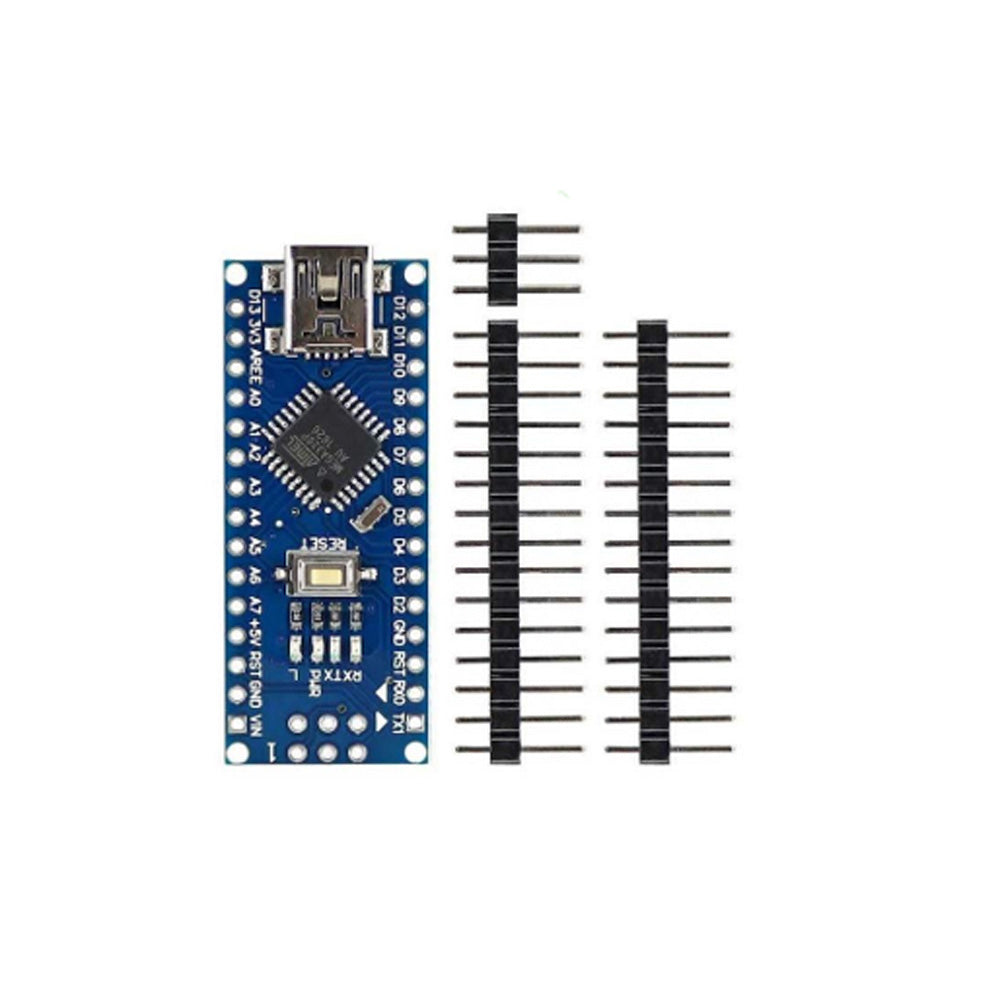

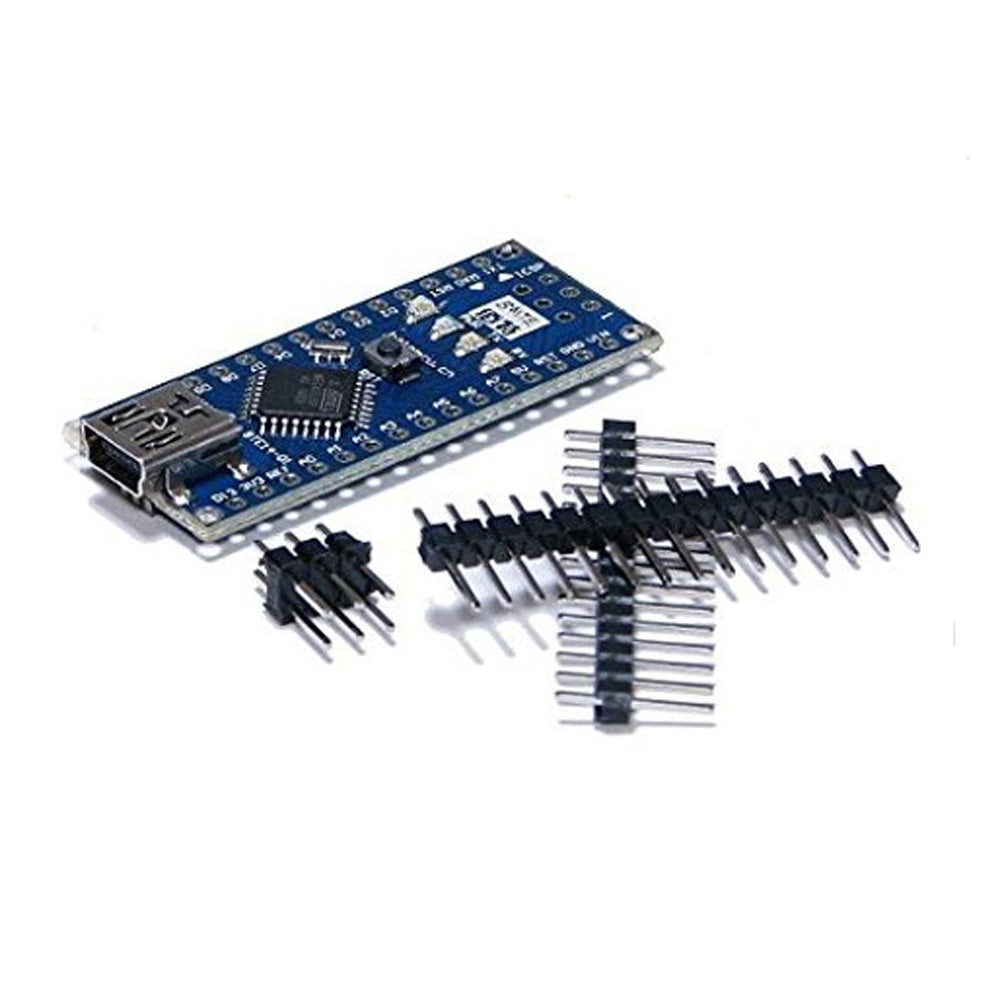

Arduino Nano R3 Atmega328P (Pin Unsoldered)

Available: In Stock
Wishlist
₹ 309.00
₹ 261.86 + ₹ 47.14 (18% GST)
  • Order within
Secure
Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328.

It has more or less the same functionality of the Arduino Due but in a different package.

It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

It is one of the smallest and yet most exciting breadboard-friendly boards available on the market today.

It's become exceptionally popular with beginner programmers thanks to its excellent functionality and the sheer variation of potential applications.

Based on the ATmega328P, this tool is fantastic for those who wish to improve their programming skills and create some interesting and unusual projects.

While the item does not come with a DC power pack, it benefits from a mini-USB cable for power, and that means you can use it with any PC or laptop device.

Pin Configuration



D0 (Rx) & D1 (Tx)   Used to receive and transmit TTL serial data
D2 & D3 These pins can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value
D3, D5, D6, D9, D10, D11 Provide 8-bit PWM output with the analogWrite() function
D11 (MOSI), D12 (MISO) & D13 (SCK) These pins support SPI communication
A4 (SDA) & A5 (SCL)  Support I2C (TWI) communication using the Wire library
AREF Reference voltage for the analog inputs
Reset Bring this line LOW to reset the microcontroller


Features

  • Automatic reset during program download
  • Power OK blue LED
  • Green (TX), red (RX), and orange (L) LED
  • Auto-sensing/switching power input
  • Small mini-B USB for programming and serial monitor
  • ICSP header for direct program download
  • Standard 0.1” spacing DIP (breadboard friendly)
  • Manual reset switch



Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328.

It has more or less the same functionality of the Arduino Due but in a different package.

It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

It is one of the smallest and yet most exciting breadboard-friendly boards available on the market today.

It's become exceptionally popular with beginner programmers thanks to its excellent functionality and the sheer variation of potential applications.

Based on the ATmega328P, this tool is fantastic for those who wish to improve their programming skills and create some interesting and unusual projects.

While the item does not come with a DC power pack, it benefits from a mini-USB cable for power, and that means you can use it with any PC or laptop device.

Pin Configuration



D0 (Rx) & D1 (Tx)   Used to receive and transmit TTL serial data
D2 & D3 These pins can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value
D3, D5, D6, D9, D10, D11 Provide 8-bit PWM output with the analogWrite() function
D11 (MOSI), D12 (MISO) & D13 (SCK) These pins support SPI communication
A4 (SDA) & A5 (SCL)  Support I2C (TWI) communication using the Wire library
AREF Reference voltage for the analog inputs
Reset Bring this line LOW to reset the microcontroller


Features

  • Automatic reset during program download
  • Power OK blue LED
  • Green (TX), red (RX), and orange (L) LED
  • Auto-sensing/switching power input
  • Small mini-B USB for programming and serial monitor
  • ICSP header for direct program download
  • Standard 0.1” spacing DIP (breadboard friendly)
  • Manual reset switch



Microcontroller Atmel ATmega328P
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins  14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory    32 KB
SRAM  2 KB
EEPROM  1 KB
Clock Speed 16 MHz
