Description

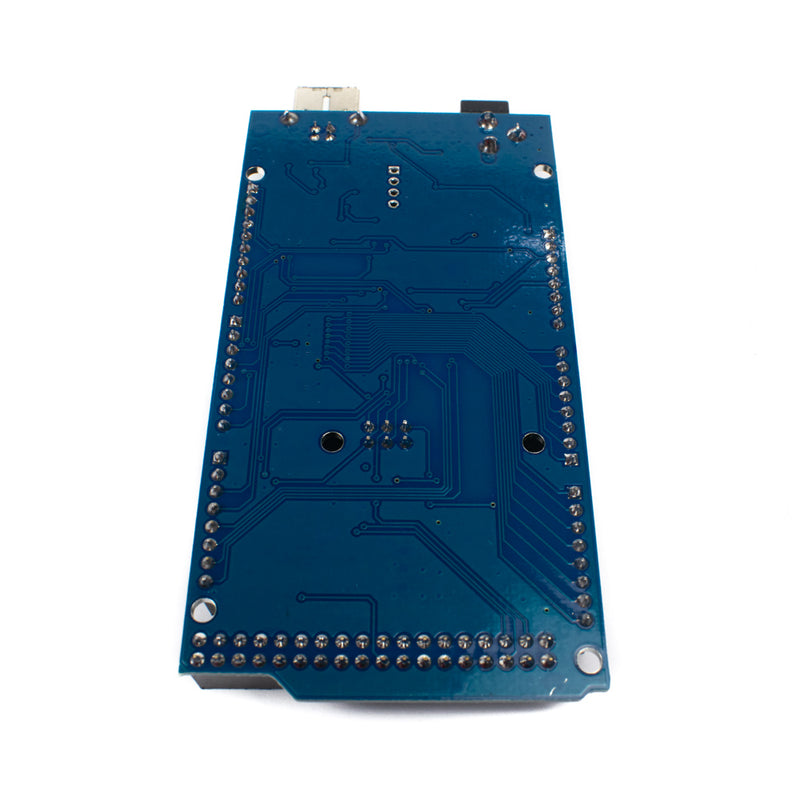

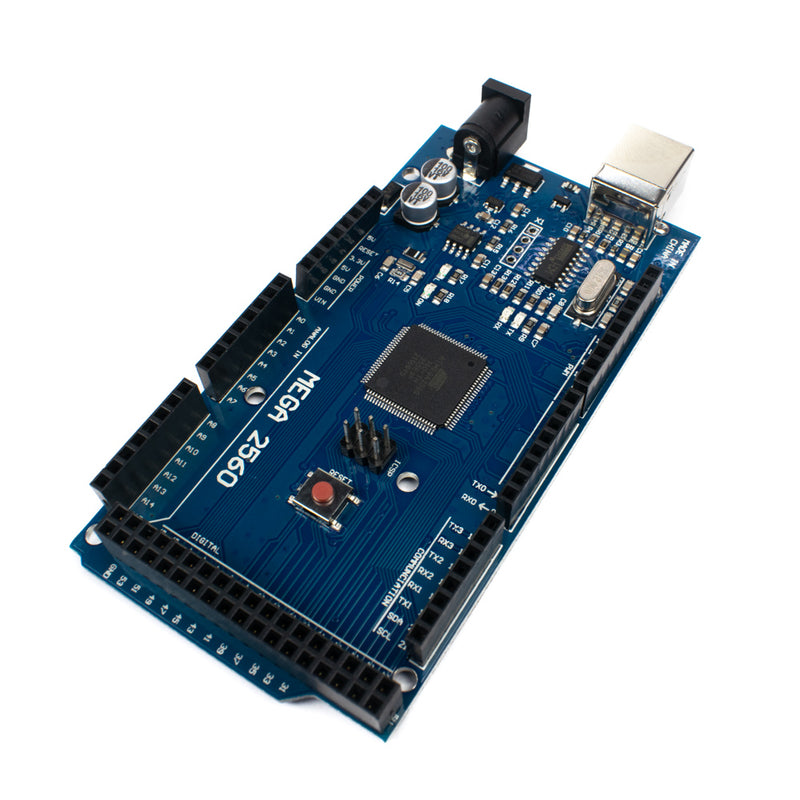

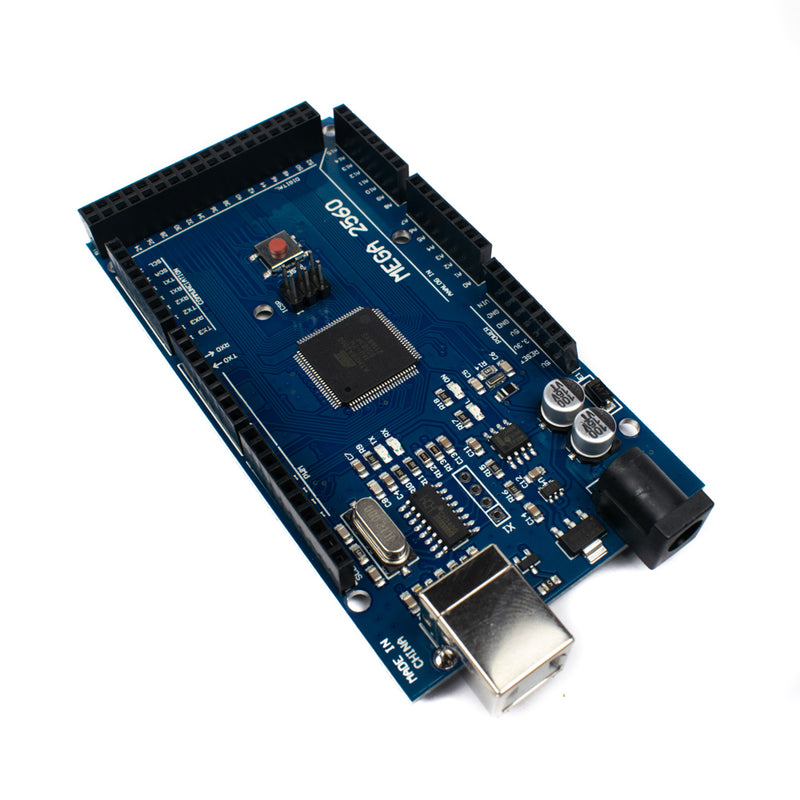

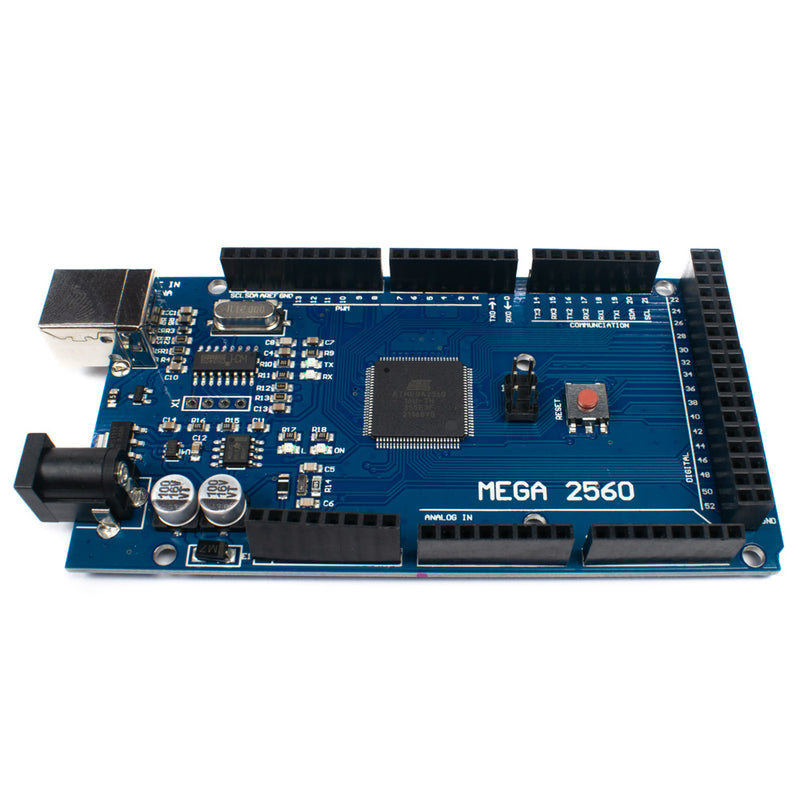

The ATmega2560-based Arduino Mega 2560 is a microcontroller board. It contains 54 digital I/O pins (14 of which are PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It comes with everything you need to support the microcontroller; simply connect it to a computer through USB or power it using an AC-to-DC adapter or battery to get started.
Specifications
Microcontroller | ATmega2560 |
Operating Voltage | 5V |
Input Voltage (recommended) | 7-12V |
Input Voltage (limits) | 6-20V |
Digital I/O Pins | 54 |
Analog Input Pins | 16 |
DC Current per I/O Pin | 40 mA |
Clock Speed | 16 MHz |
Flash Memory | 256 KB |
SRAM | 8 KB |
EEPROM | 4 KB |
Programmer IC | CH340 |
Country of Origin | China |
