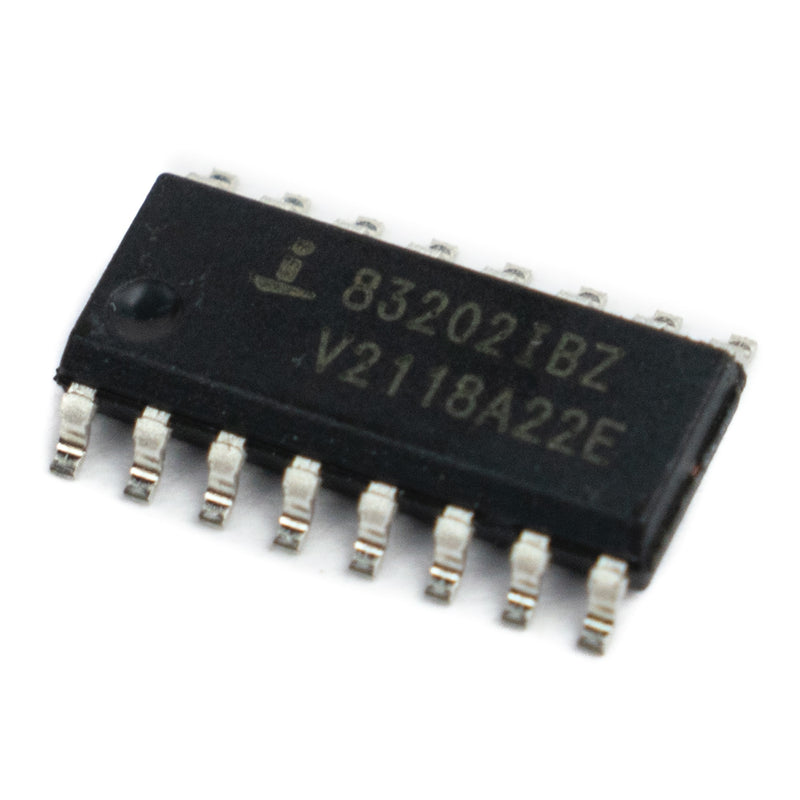

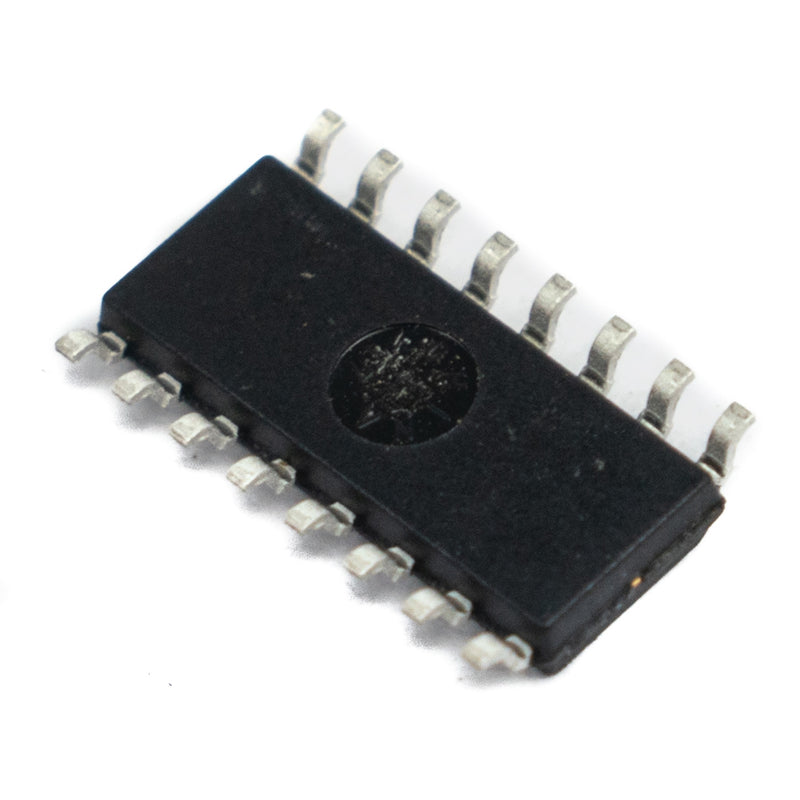

ISL83202 55V, 1A Peak Current H-Bridge FET Driver IC

Save 16%
Sold By: HatchnHackSKU: B16-22

Price:
Sale price₹ 167.00 Regular price₹ 199.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

The ISL83202 is a medium-frequency H-Bridge FET driver with a peak drive current of 1A (typ) that is intended for driving high- and low-side N-Channel MOSFETs in medium-voltage applications. The ISL83202, which is optimised for PWM motor control and uninterruptible power supply systems, offers simple and flexible bridge-based design. The ISL83202 is excellent for switching frequencies up to 200kHz, with typical input-to-output propagation delays as low as 25ns and a user-programmable dead-time range of 0.1s to 4.5s. The ISL83202's dead-time can be programmed using a single resistor. The ISL83202's four separate driver control inputs (ALI, AHI, BLI, and BHI) allow driving of any switch combination except those that would result in a shoot-through condition.

Features

  • Independently Drives 4 N-Channel FETS in Half-Bridge or
  • Full Bridge Configurations
  • Bootstrap Supply Max Voltage: 70VDC
  • Drives a 1000pF Load in Free Air at +50°C with Rise and Fall Times of 15ns (typ)
  • User-Programmable Dead Time from 0.1 to 4.5us
  • DIS (Disable) Overrides Input Control and Refreshes Bootstrap Capacitor when Pulled Low
  • Input Logic Thresholds Compatible with 5V to 15V Logic Levels
  • Shoot-Through Protection
  • Undervoltage Protection

Applications

  • UPS Systems
  • DC Motor Controls
  • Full Bridge Power Supplies
  • Switching Power Amplifiers
  • Noise Cancellation Systems
  • Battery-Powered Vehicles
  • Peripherals
  • Medium/Large Voice Coil Motors
Specifications
Model ISL83202
Supply Voltage 8.5V to 15V DC
Number of Channels 4
Driver Configuration Half Bridge
Package SOIC 16
Peak Output Current 1A
Power Switch Type MOSFET
Input Delay 40ns
Output Delay 25ns
Operating Temperature -55°C to 125°C
Country of Origin China
